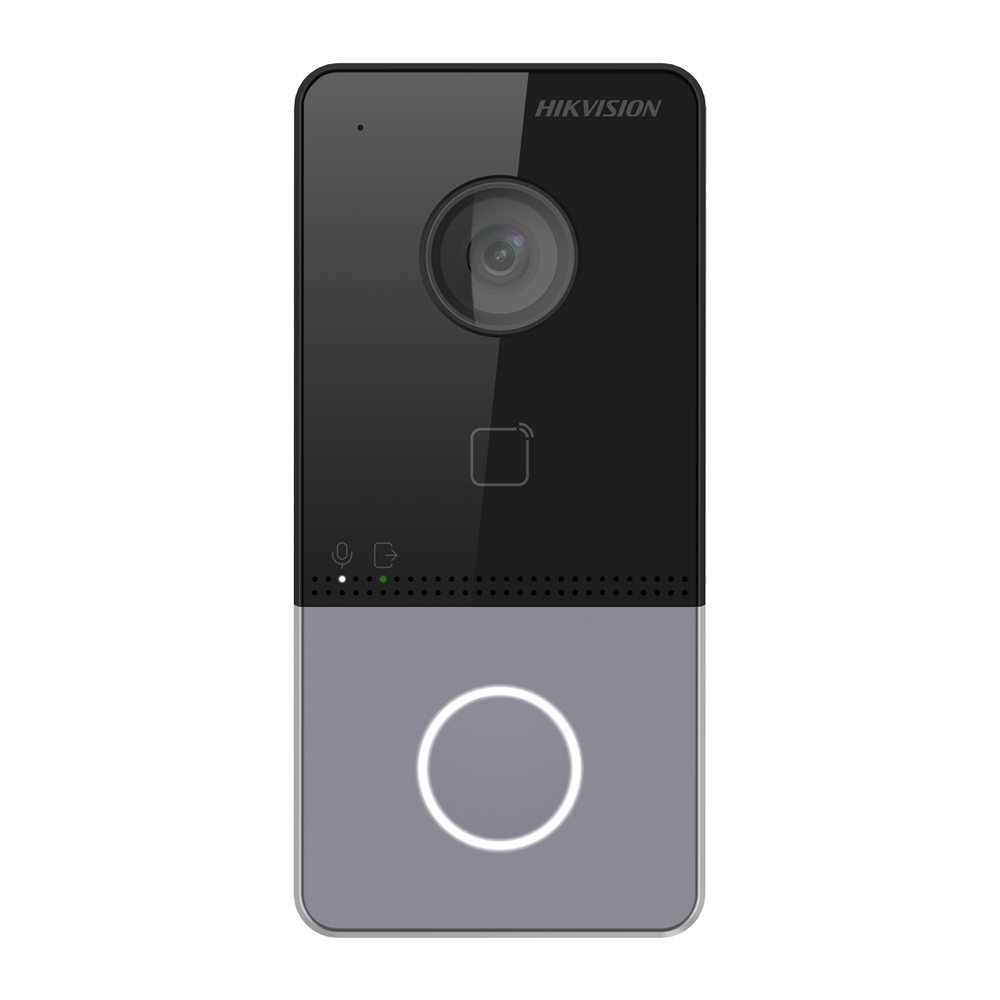

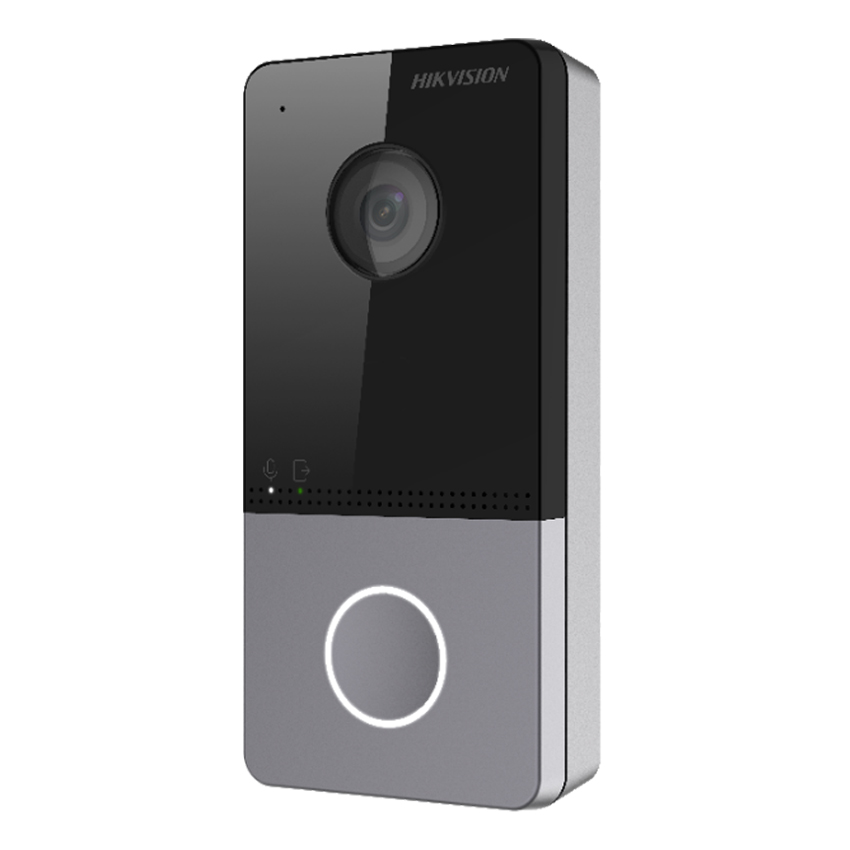

Hikvision Gen2 2MP 1 Button Intercom Door Station Wi-Fi, Mifare, 12VDC/POE (DS-KV6113-WPE1)

Product Description

Specifications

Model Number: DS-KV6113-WPE1

System parameters
Operation system	Embedded Linux operation system
Flash	16 M, 32 M
RAM	256 M
CPU	Embedded MCU Processor
Display parameters
Size	/
Operation method	/
Type	/
Resolution	/
Video parameters
Video Compression standard	H.264
Supplement light	IR supplement
Lens	1
FOV	Horizontal: 129° Vertical: 75°
WDR	True WDR
Pixel	Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576
Audio parameters
Audio compression standard	G.711 U
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio Compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
Fingerprint capacity	/
User capacity	2000
Face capacity	/
Linked indoor station	1
Event capacity	/
Network parameters
Communication protocol	TCP/IP, RSTP
Wired network	10/100 Mbps self-adaptive Ethernet
Wi-Fi	Support
Bluetooth	Not supported.
3G/4G	/
Received frequency	2.4 to 2.4835GHz
Transmitted frequency	2.4 to 2.4835 GHz
Bandwidth	20 to 40 MHz
Frequency power	802.11b:16dBm +/- 1.5dBm 802.11g:15dBm +/- 1.5dBm 802.11n(ht20):14dBm +/- 1.5dBm 802.11n(ht40):12dBm +/- 1.5dBm
Device interfaces
Alarm input	4
Network interface	1
TAMPER	1
RS-485	1
Exit button	1
USB	0
Wiegand	0
TF card	0
Alarm output	0
Lock control	1
Door contact input	1
Power interface	1
General
Button	1
Indicator	2
Installation	Surface mounting
Working temperature	-40° C to +55° C(-40° F to 131° F)
Working humidity	10% to 95%
Indicator	2
Weight	265g
Protective level	IP65
Power supply method	IEEE802.3af, standard PoE 12 VDC

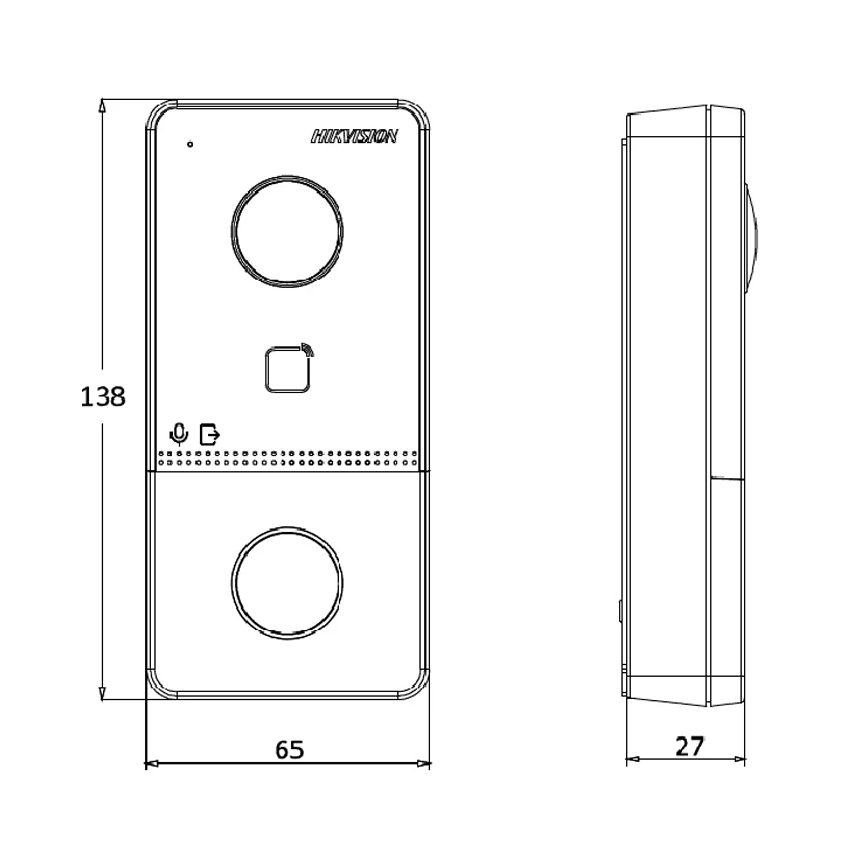

Dimensions	138 mm × 65 mm × 27 mm
Battery	/
Application environment	Outdoor
Power consumption	＜ 10 W
