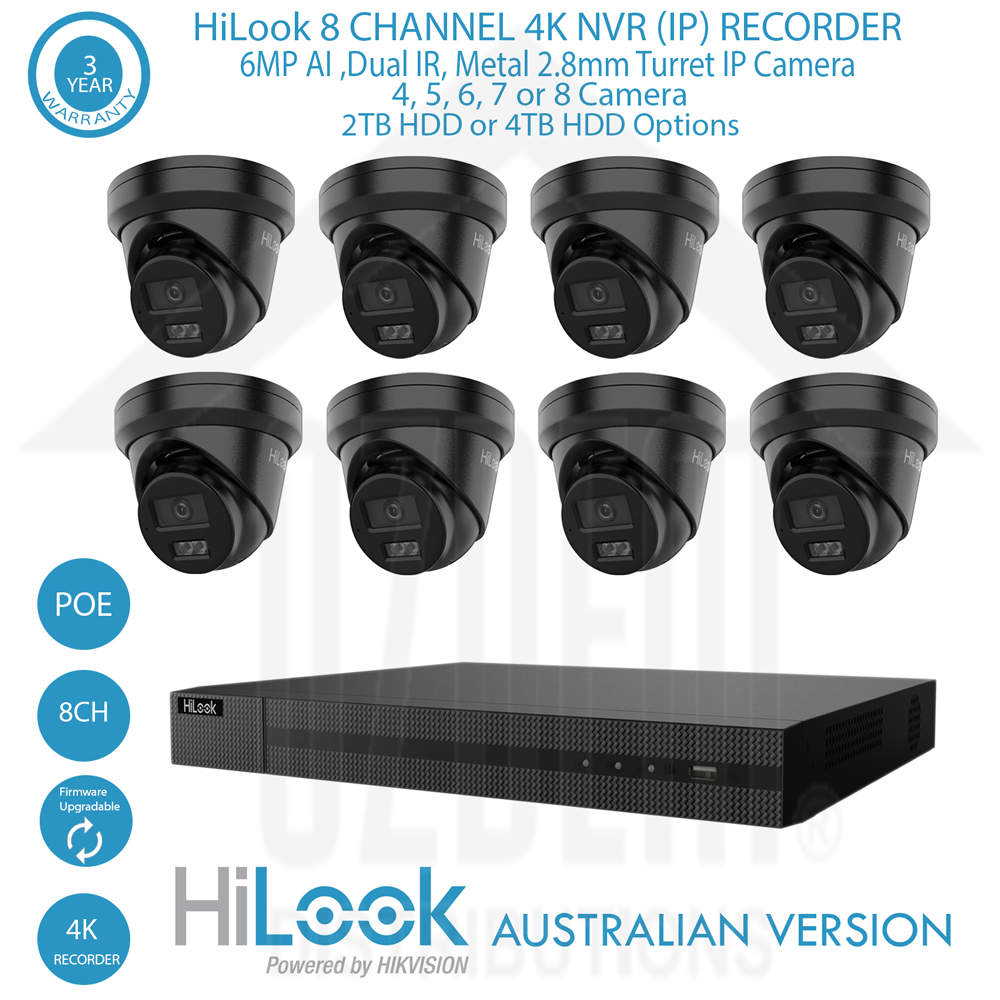

HiLook 8 Channel 4K NVR Kit with 6MP AI ,Dual IR, Metal 2.8mm Fixed Black Turret IP Camera & HDD Options

Product Description

Specifications

Model Number: NVR-108MH-C/8P+IPC-T262H-MU-BLK

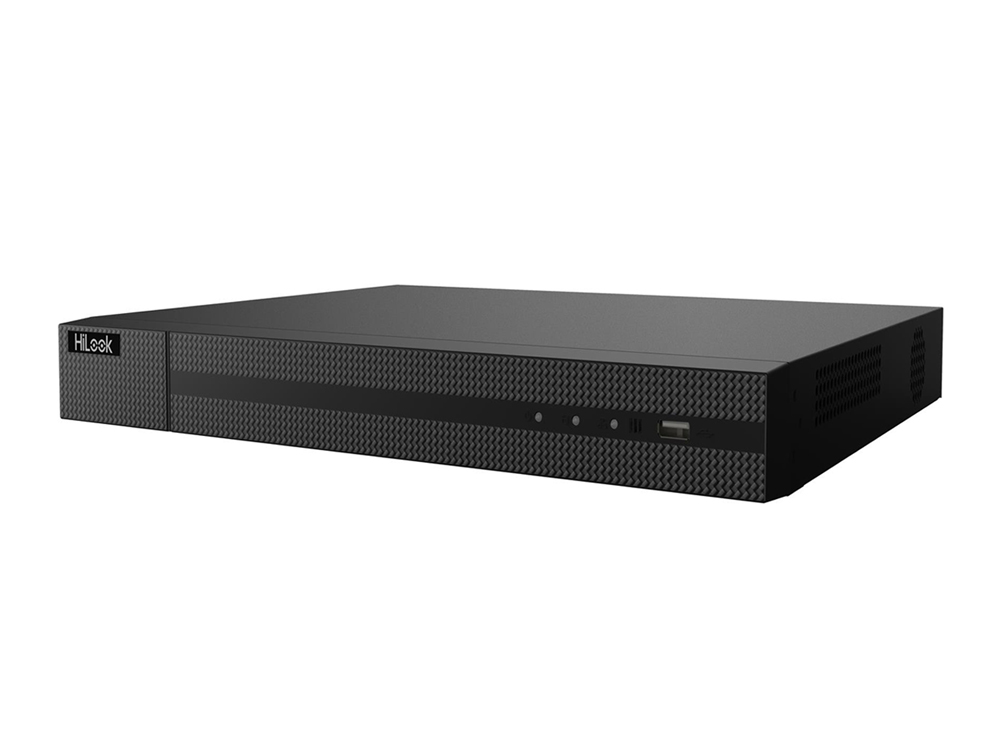

Recorder Specifications

Model Number: NVR-108MH-C/8P

Video/Audio Input
Two-way audio input:	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:	8-ch
IP Video input:	Up to 8 MP resolution
Network
Incoming bandwidth:	80Mbps
Outgoing bandwidth:	80Mbps

Video/Audio Output
LCD/HDMI/VGA output resolution:	HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution:	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:	1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:	8-ch
Decoding
Capability:	1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk
SATA:	1 SATA interface for 1 HDD
Capacity:	Up to 6TB capacity for each HDD

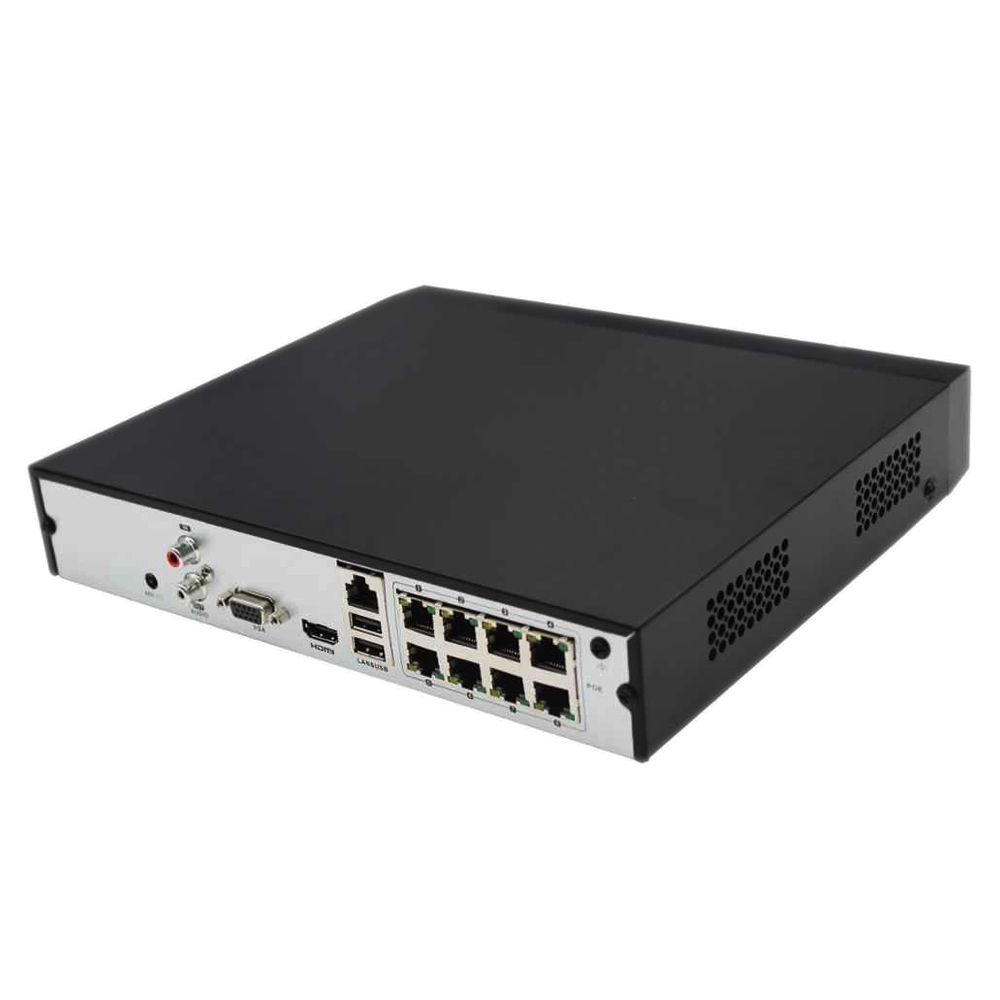

External Interface
Network Interface:	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:	2, USB2.0

POE
Supported Standard:	AF and AT
Interface:	8 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power:	75W
General
Power Supply:	48 VDC
Power:	≤ 90 W
Consumption(without hard disk and POE):	≤ 10 W (without enabling PoE)
Working Temperature:	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:	10 % ~ 90 %
Chassis:	1U chassis
Dimensions:	315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD):	≤ 1 kg (2.2 lb)

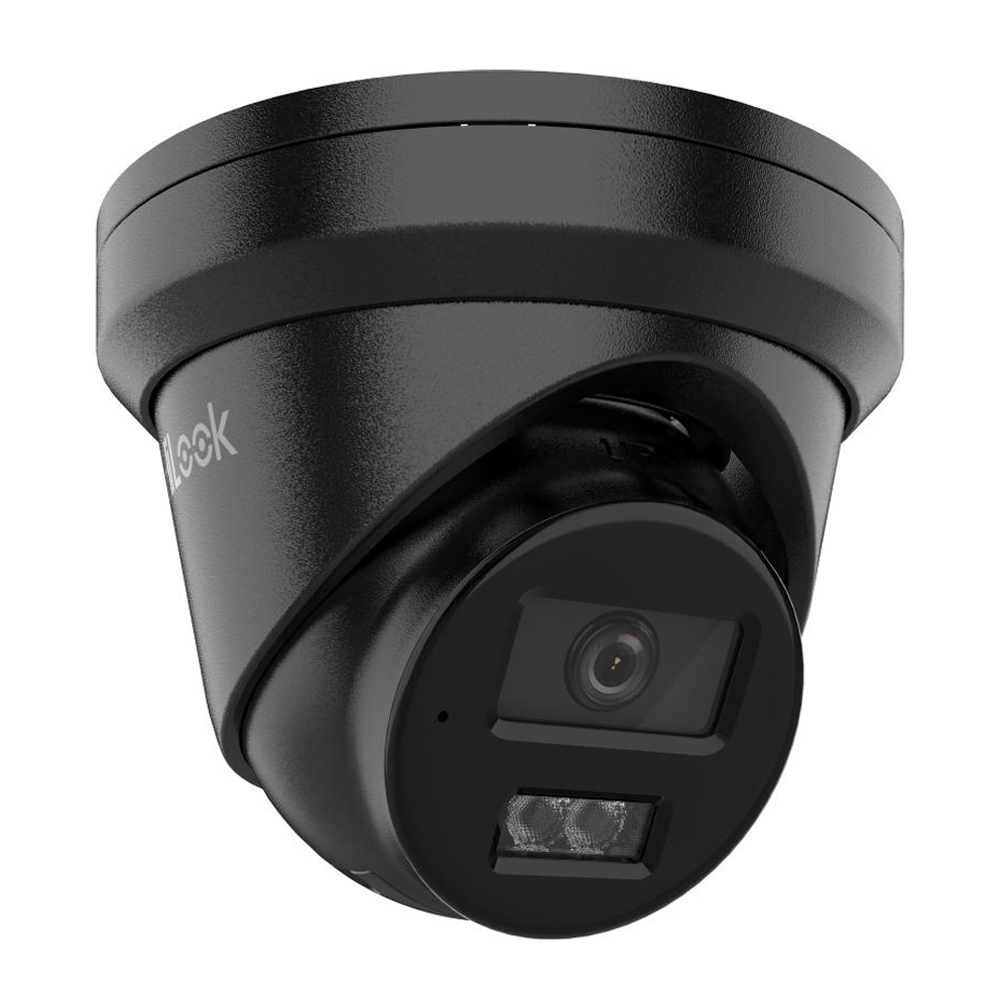

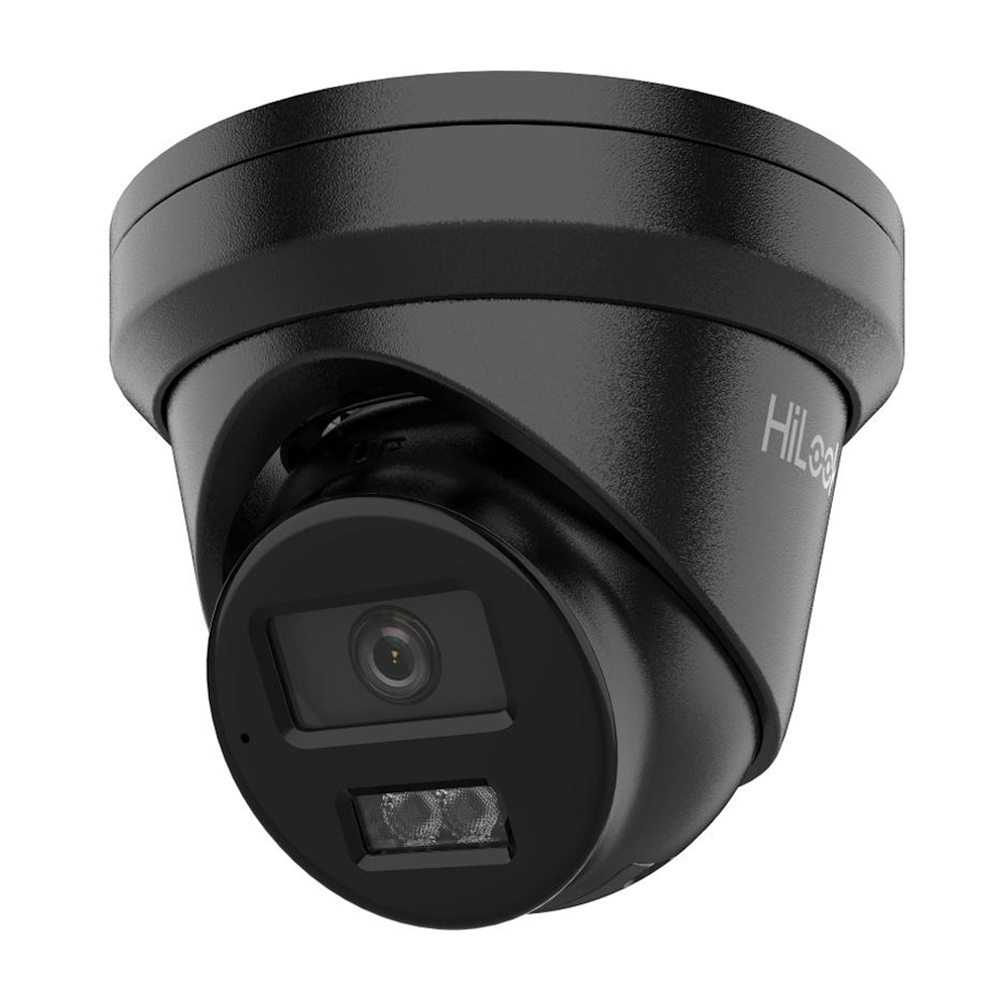

Camera Specifications
Model Number: IPC-T262H-MU-BLK

Feature	Specification
Camera
Image Sensor	1/2.4" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm: HFOV 105°, VFOV 55°, DFOV 127°
	4 mm: HFOV 78°, VFOV 38°, DFOV 96°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression	H.265+/H.265/H.264+/H.264, H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
Audio
Audio Type	Mono sound
Audio Sampling Rate	8 kHz/16 kHz
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for ONVIF, security audit log, host authentication (MAC address)
Simultaneous Live View	Up to 6 channels
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-In Microphone	Yes
Reset Key	Yes
Environment
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup And Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
General
Power	12 VDC ± 25%, 0.41 A, max. 5 W (DC power), PoE: IEEE 802.3af, Class 3, max. 6.5 W (PoE)
Material	Metal
Dimension	Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")
Weight	Approx. 600 g (1.3 lb.)
With Package Weight	Approx. 909 g (2.0 lb.)
Approval
EMC	CE-EMC, RCM, IC
Safety	UL, CB, CE-LVD, BIS
Environment	CE-RoHS, WEEE, Reach
Protection	IP67
Language	English, Ukrainian
General Function	Heartbeat, anti-banding, mirror, password protection, password reset via email
