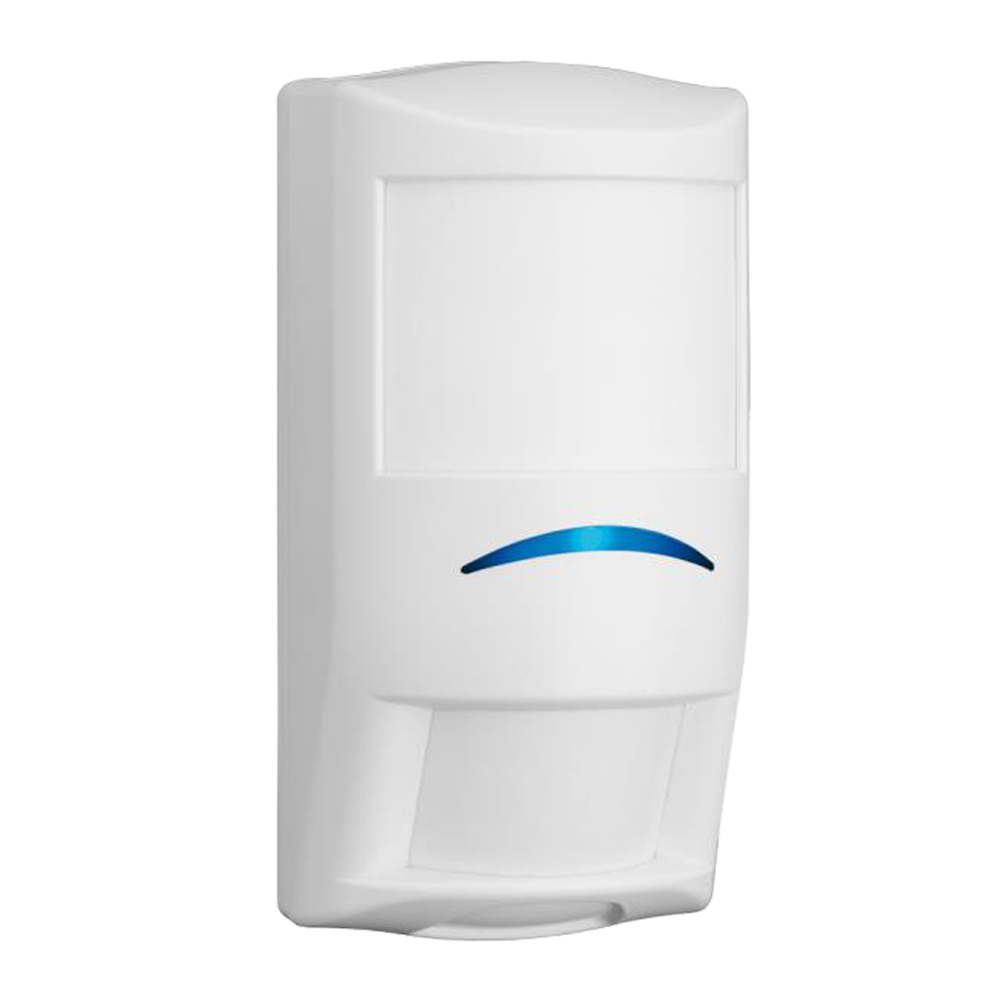

Bosch Professional Series Tri Tech Motion Detector PIR

Specifications

Model Number: ISC-PDL1-W18G

Electrical
Power Requirements
Voltage (Operating):	9 VDC to 15 VDC
Current (Maximum):	< 25 mA
Current (Standby):	13 mA
Outputs
Relay:	Solid state relay, normally-closed (NC) contacts power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Tamper:	Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit.
Trouble:	Solid‑state relay normally-closed (NC) contacts.
Mechanical
Enclosure Design
Colour:	White
Dimensions:	136 mm x 69 mm x 58 mm (5.25 in. x 2.75 in. x 2.25 in.)
Material:	High-impact ABS plastic
Indicators
Alarm Indicator:	• Blue LED for TriTech alarms • Yellow LED for microwave detection • Red LED for PIR detection
Zones
Zones:	86
Frequency Information
Radio Frequency Interference (RFI) immunity:	No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m.
Environmental
Relative Humidity:	0 to 95%, non-condensing
Temperature (Operating and Storage):	-29°C to +55°C (-20°F to +130°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Protection Rating:	IP41, IK04 (EN 60529, EN 50102)
