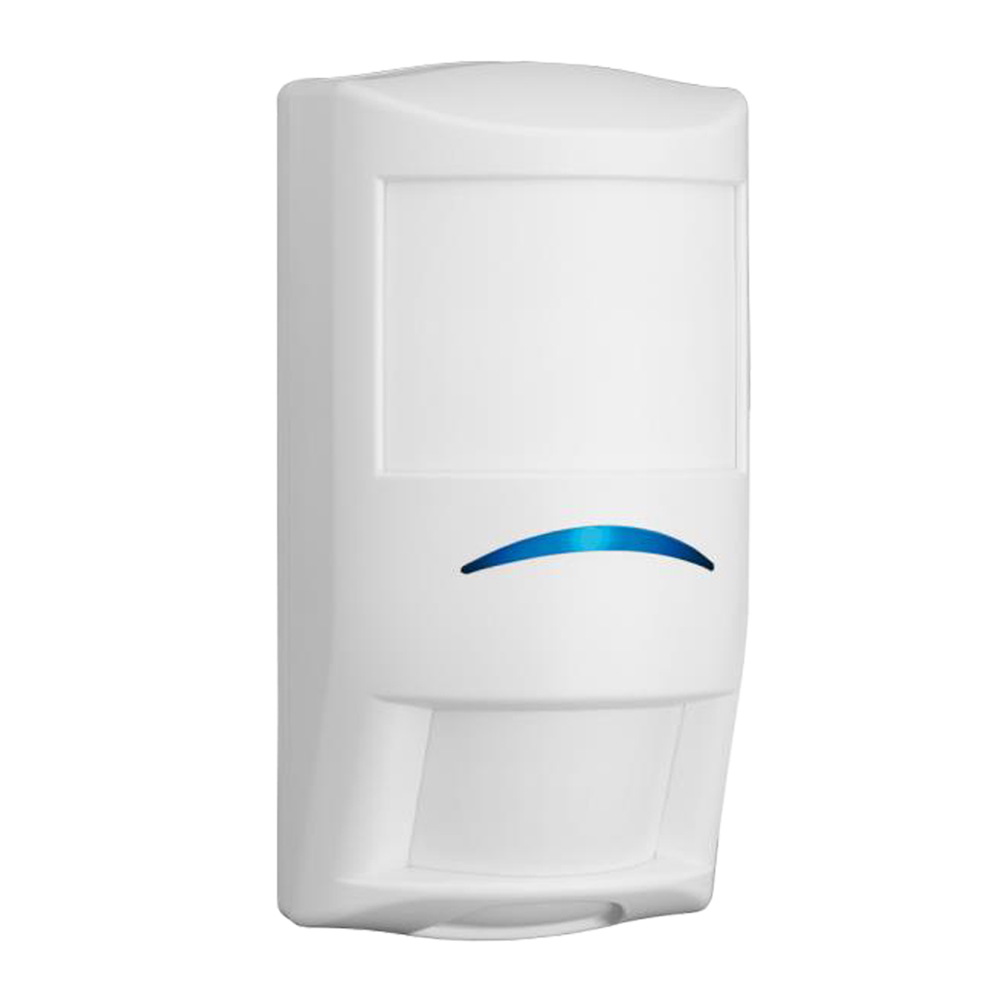

Bosch Professional Series Motion Detector PIR

Product Description

Specifications

Model Number: ISC-PPR1-W16

Power Requirements
Voltage (Operating)	9 VDC to 15 VDC
Current (Maximum)	< 15 mA
Current (Standby):	< 10 mA at 12 VDC
Relay	Solid state relay, normally-closed (NC) contacts, power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω
Tamper	Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit.
Enclosure
Colour	White
Dimensions:	127 mm x 69 mm x 58 mm
Material	High-impact ABS plastic
Indicators
Alarm Indicator	Blue alarm LED
Zones	86
Environmental Considerations
Relative Humidity:	0 to 95%, non-condensing
Temperature	-29°C to +55°C For UL Certificated installations, 0°C to +49°C Environmental Class II EN 50130-5
Protection Rating	IP41, IK04 (EN 60529, EN 50102
Warranty:	3 years
