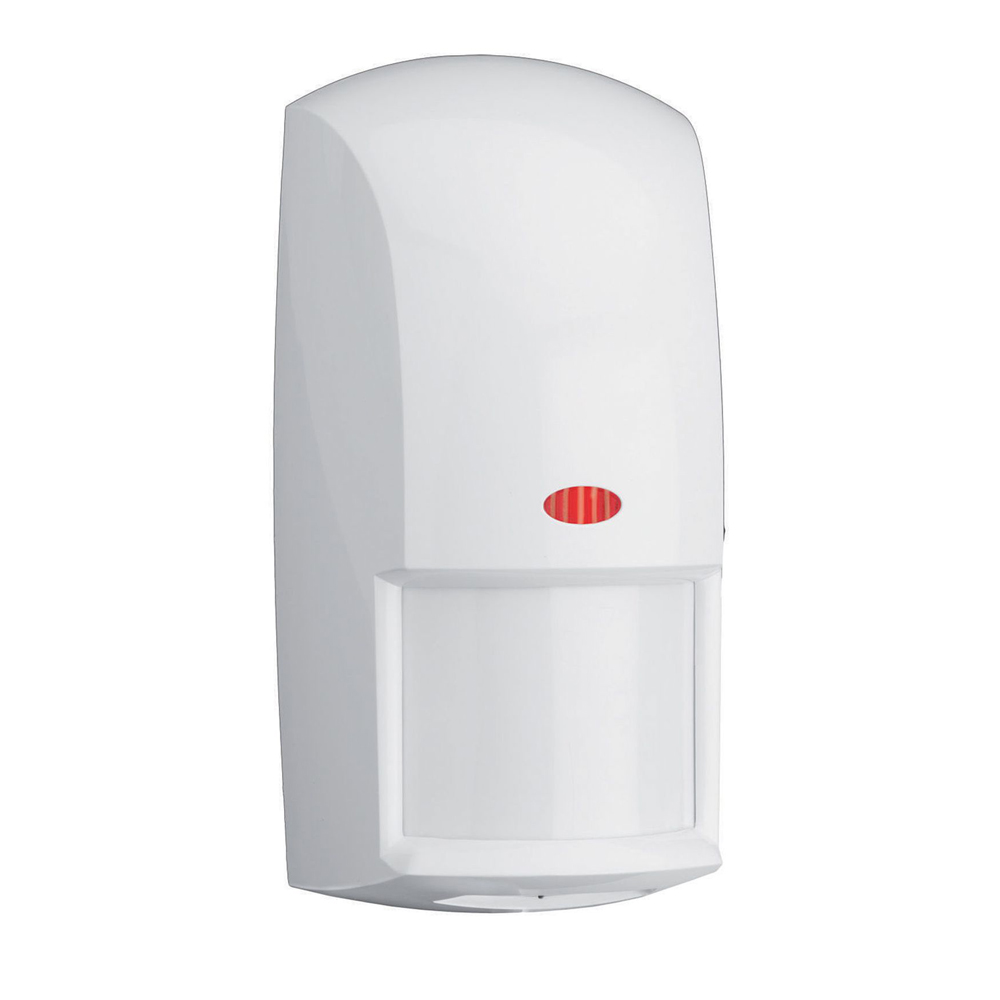

Bosch Outdoor IP54 Tritech Motion Detector PIR

Product Description

Specifications

Model Number: OD850

Current	62 mA maximum
Input Power	10-15 VDC at 22 mA standby
Power	Limits: Input power must be provided by an Approved Limited Power Source and all outputs must be connected to SELV (safety extra-low voltage) circuits only (available separately)
Standby Power	No internal standby battery For UL Listed product installations, 4 hr (248 mAh) of standby power must be supplied by the control unit or UL Listed burglar power supply (available separately)
Environment	Complies with Environmental Class III (EN50130-5)
Relative Humidity	0 to 95%, non-condensing
Operating Temperature	-31 to 130°F (-35 to 54°C)
Alarm Output	Form A: Normally closed contact opens on alarm Form C: Timed relay contact alternates state on alarm and follows an installer programmable timer Contact Rating: 3 W, 125 mA maximum, 25 VDC maximum for DC resistive loads Protected by a 4.7 Ohms, 0.5 W resistor in the common C leg of the relayNote: Do not use with capacitive or inductive loads
Tamper Output	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit
Coverage	50 x 50' (15 x 15 m)
Frequency	10.525 GHz
Mounting Height	Recommended: 7 to 9' (2.1 to 2.8 m)
Material	Polycarbonate
Certifications & Approvals	Europe: CE Belgium: INCERT Russia: GOST DE.AE63.B03457 USA: UL 639 (Standard for Intrusion Detection Units), FCC Australia: C-TICK Canada: ULC-S306-03 (Canadian Standard for Intrusion Detection Units) Brazil: ANATEL Singapore: iDA #LPREQ-S0155-2004
IP Rating	IP54
Dimensions	6.5 x 3.25 x 2.5" (16.5 x 8.25 x 6.35 cm)
