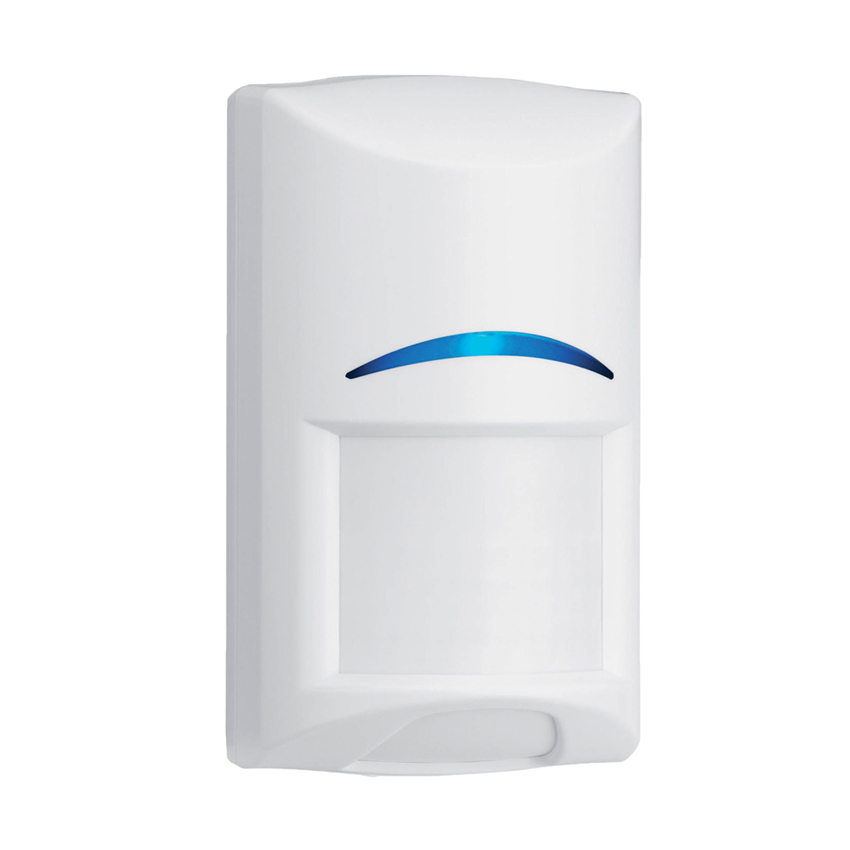

Bosch Gen2 Wireless Radion Motion Detector PIR

Product Description

Specifications

Model Number: RFPR-12

Properties
Dimensions:	111 mm x 60 mm x 43 mm (4.4 in x 2.4 in x 1.7 in )
Power
Power/Voltage:	One CR123A Lithium battery, 3 VDC
Battery life:	Up to 5 years
Environmental Considerations
Temperature:	Functional range: -10ﾟC to +49ﾟ (+14ﾟF to +120ﾟF) UL only: 0ﾟC to +49ﾟC (+32ﾟF to +120ﾟF) EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF
Environment	Complies with EN50130-5 Class II
Relative Humidity:	Up to 93% non-condensing
Cover and Wall Tamper Switch:	Transmits a tamper switch signal when the detector is removed from its base, or pulled away from the wall.
Frequency:	433.42 MHz
Use:	Intended for indoor use.
Compatibility
Receivers:	B810 wireless receiver (compatible with RFPR-12-A and RFPR-C12-A only) RFRC-OPT wireless receiver (compatible with RFPR-12, and RFPR-C12 only) RFRC-OPT-CHI wireless receiver (compatible with RFPR-12-CHI, and RFPR-C12-CHI only)
