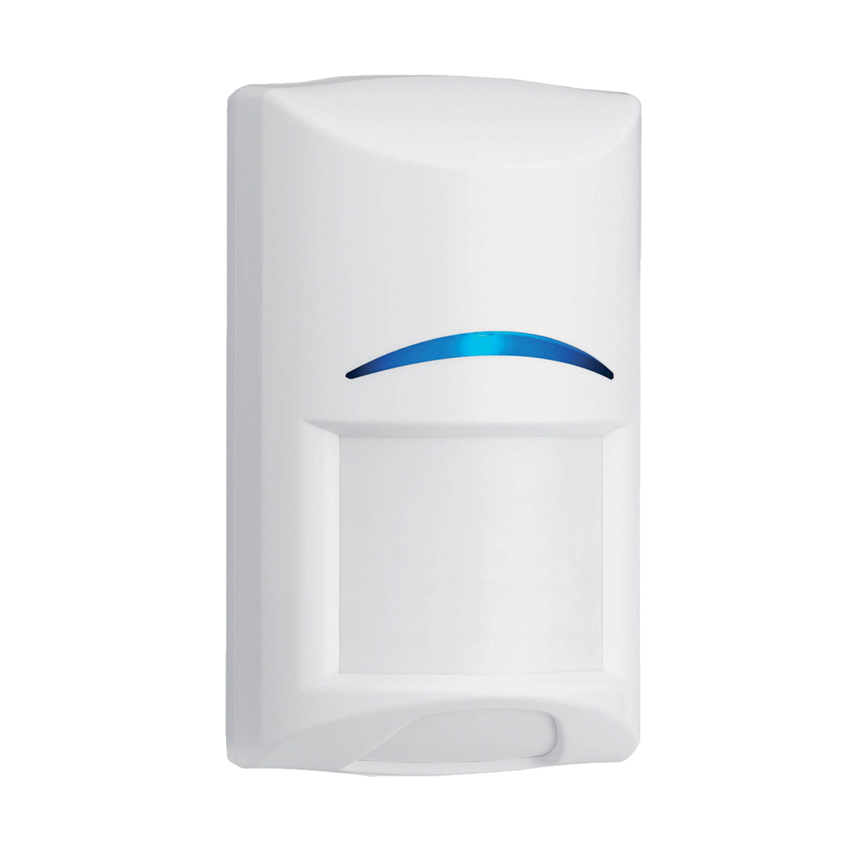

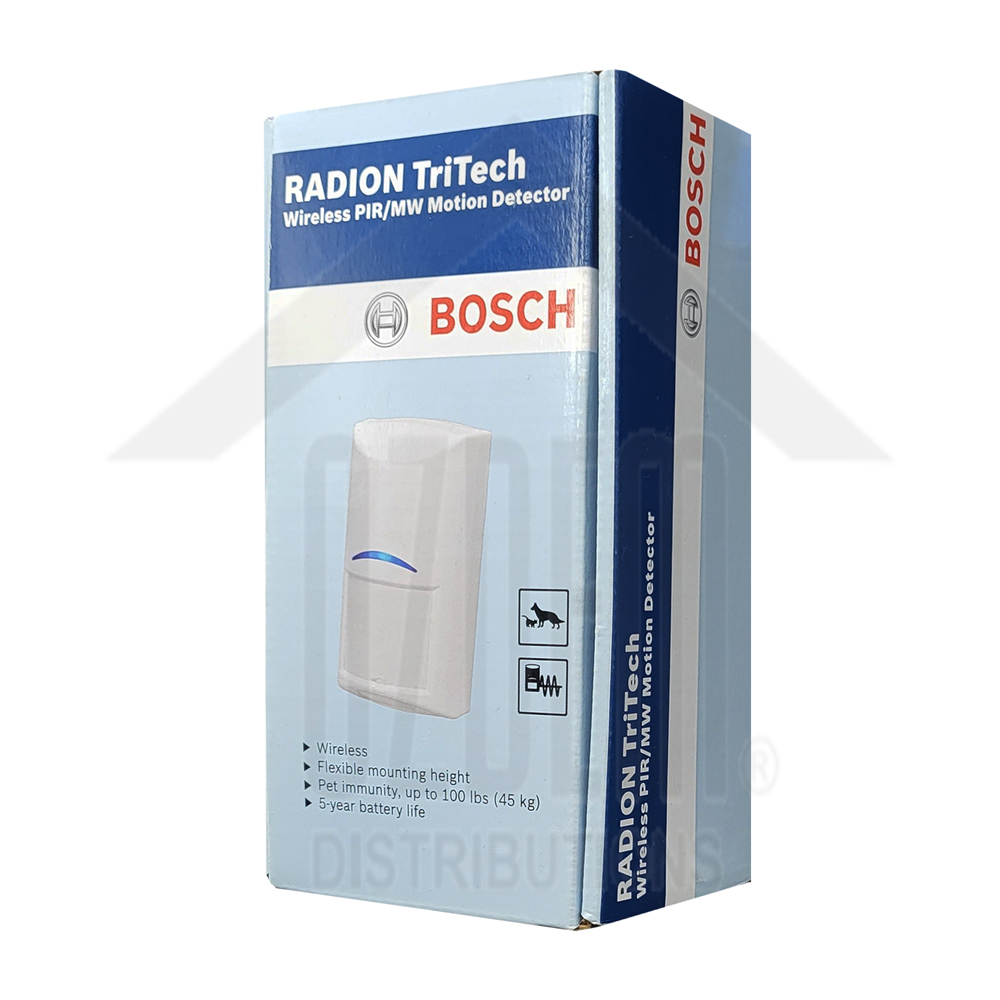

Bosch Gen2 Tri Tech Wireless Radion Motion Detector PIR

Product Description

Specifications

Model Number: RFDL-11

Dimensions:	138 mm x 72 mm x 64 mm (5.5 in x 2.8 in x 2.5 in)
InternalCoveragePointability:	Vertical: -4ﾟ to -10ﾟ
AlarmIndicator	Blue LED for TriTech alarmsGreen LED for microwave detectionRed LED for PIR detection
SensitivitySelection:	Field selectable for standard or intermediate sensitivity.
Power/Voltage:	Four AA Alkaline batteries, 1.5 VDC (1.5 VDC x 4 batteries = 6 VDC total)
Batterylife:	Up to 5 years
Temperature:	Functional range: -10ﾟC to +49ﾟ(+14ﾟF to +120ﾟF)UL only: 0ﾟC to +49ﾟC (+32ﾟF to+120ﾟF)EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF
Environment	Complies with EN50130-5 Class II
RelativeHumidity:	Up to 93% non-condensing
CoverandWallTamperSwitch:	Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface.
Frequency:	433.42 MHz
Use:	Intended for indoor use.
Receivers:	B810 wireless receiver (compatible with RFDL-11-A only)RFRC-OPT wireless receiver (compatible with RFDL-11 only)RFRC-OPT-CHI wireless receiver (compatible with RFDL-11-CHI only)
