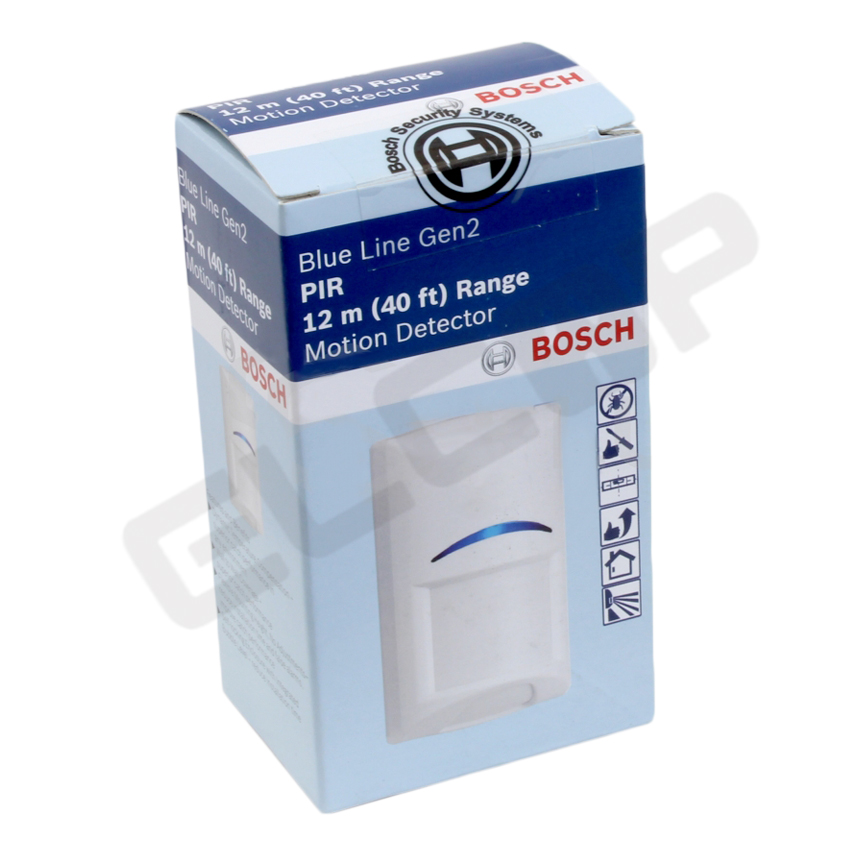

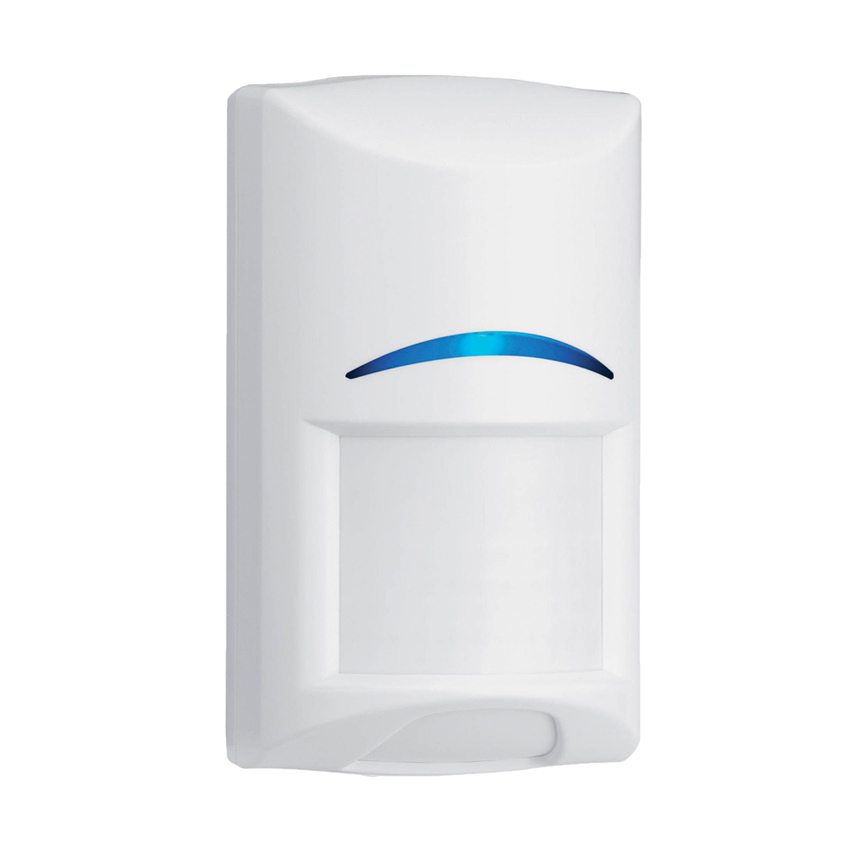

Bosch Gen2 Blue Line Motion Detector PIR

Product Description

Specifications

Model Number: ISC-BPR2-W12

Electrical
Current (standby/alarm):	10 mA at 12 VDC
Voltage (operating):	9 VDC to 15 VDC
Environmental
Environment	Complies with EN50130-5 Class II
Relative Humidity:	0 to 95%, non-condensing For UL Listed product installations, 0 to 85%, non-condensing
Temperature (operating):	-30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
Mechanical
Colour:	White
Dimensions:	105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
Material:	High-impact ABS plastic
Radio Frequency Interference (RFI) Immunity	No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
Outputs
Relay:	Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper:	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W

Others

Coverage	40 x 40' (12 x 12 m)
Mounting Height	Recommended: 7.5 to 9' (2.2 to 2.8 m)
Material	High-impact ABS plastic
