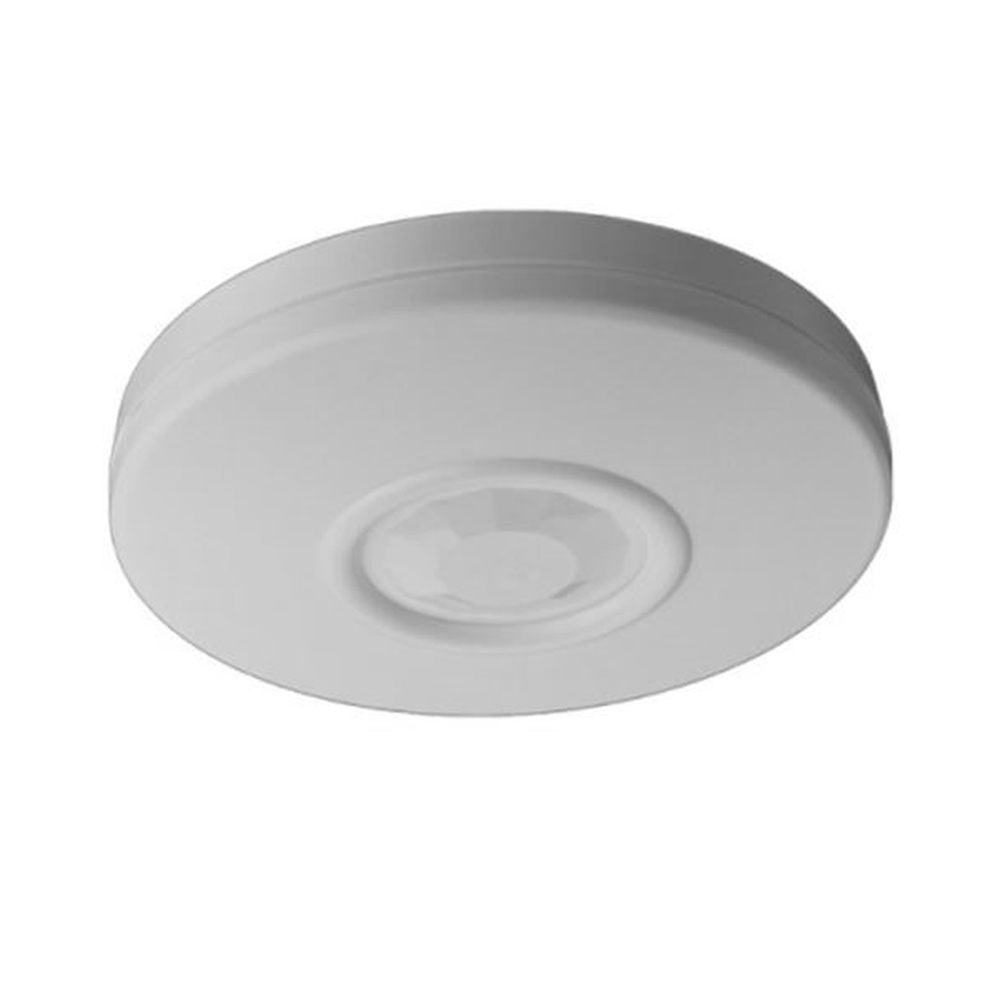

Bosch 360' Low Profile Ceiling Mount Panoramic PIR Motion Sensor (DS936)

Product Description

Specifications

Model Number: DS936

Material:	High impact ABS plastic enclosure.
Dimensions:	3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
Temperature	-29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity:	No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m
DS936:	Complies with Environmental Class II (EN50130-5)
Height Range:	2 m to 3.6 m (7 ft to 12 ft)
Location:	Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box
Pattern Pointability:	±15° rotational
Alarm:	Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
Tamper:	Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum
Current:	20 mA at 12 VDC
Voltage:	10 VDC to 15 VDC
