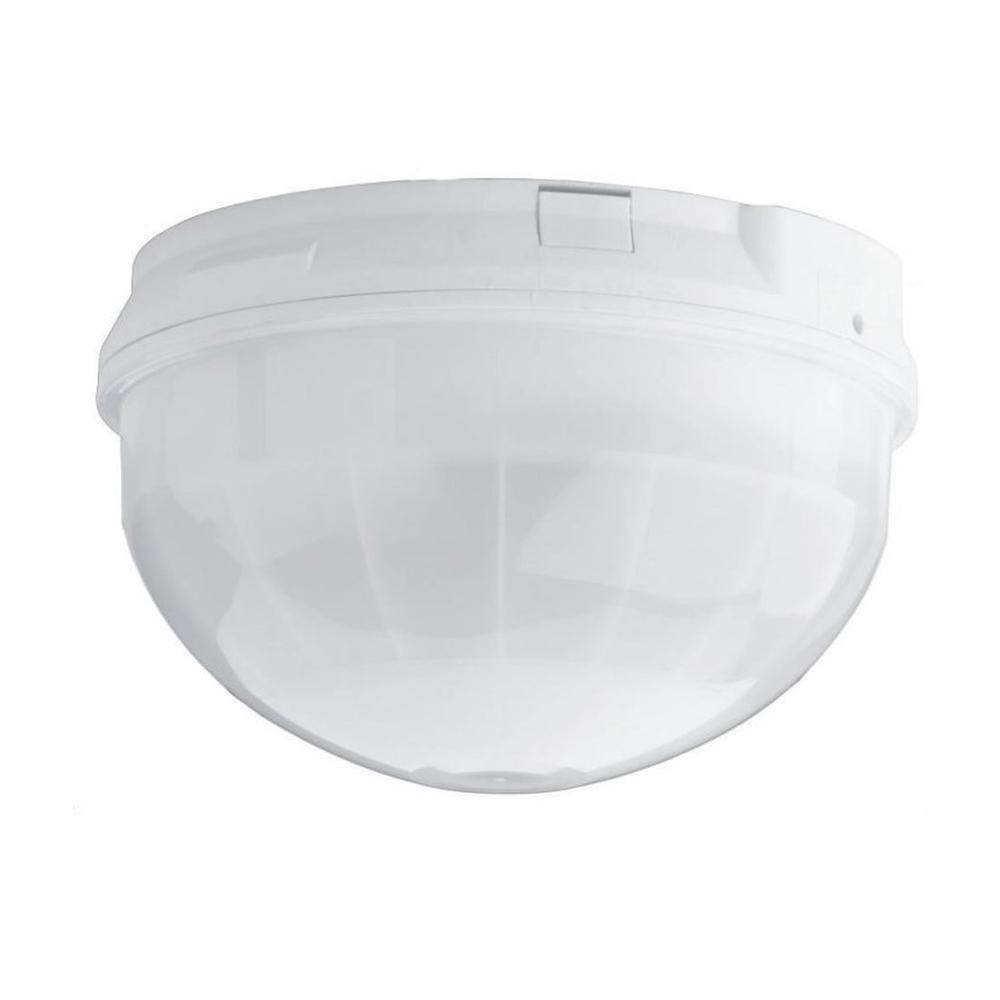

Bosch 360' Ceiling Mount Panoramic PIR Motion Sensor (DS938)

Product Description

Specifications

Model Number: DS938

Material:	High impact ABS plastic enclosure
Dimensions:	8.4 cm x 13.3 cm(3.3 in x 5.25 in)
Operating Temperature:	-29°C to +49°C (-20°F to +120°F)For UL Listed Applications, 0°C to + 49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity:	No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
DS938Z:	Complies with Environmental Class II (EN50130-5)
Height (recommended):	2.5 m to 6 m (8 ft to 18 ft)
Location:	Mounts directly to ceiling or to standard octagonal electrical box.
Internal Pointability:	Coverage is adjustable ±10° horizontally, +2° to -18° vertically.
Alarm:	Form C reed relay at 3.0 W, 125 mA at 28 VDC for resistive loads
Tamper:	Normally-closed. Contacts rated at 28 VDC, 125 mA maximum.
Alarm:	Signal through POPEX data bus.
Tamper:	Signal through POPEX data bus. Signaled as missing.
Trouble:	Signal through POPEX data bus.
Current:	18 mA at 12 VDC
Voltage:	6 VDC to 15 VDC
