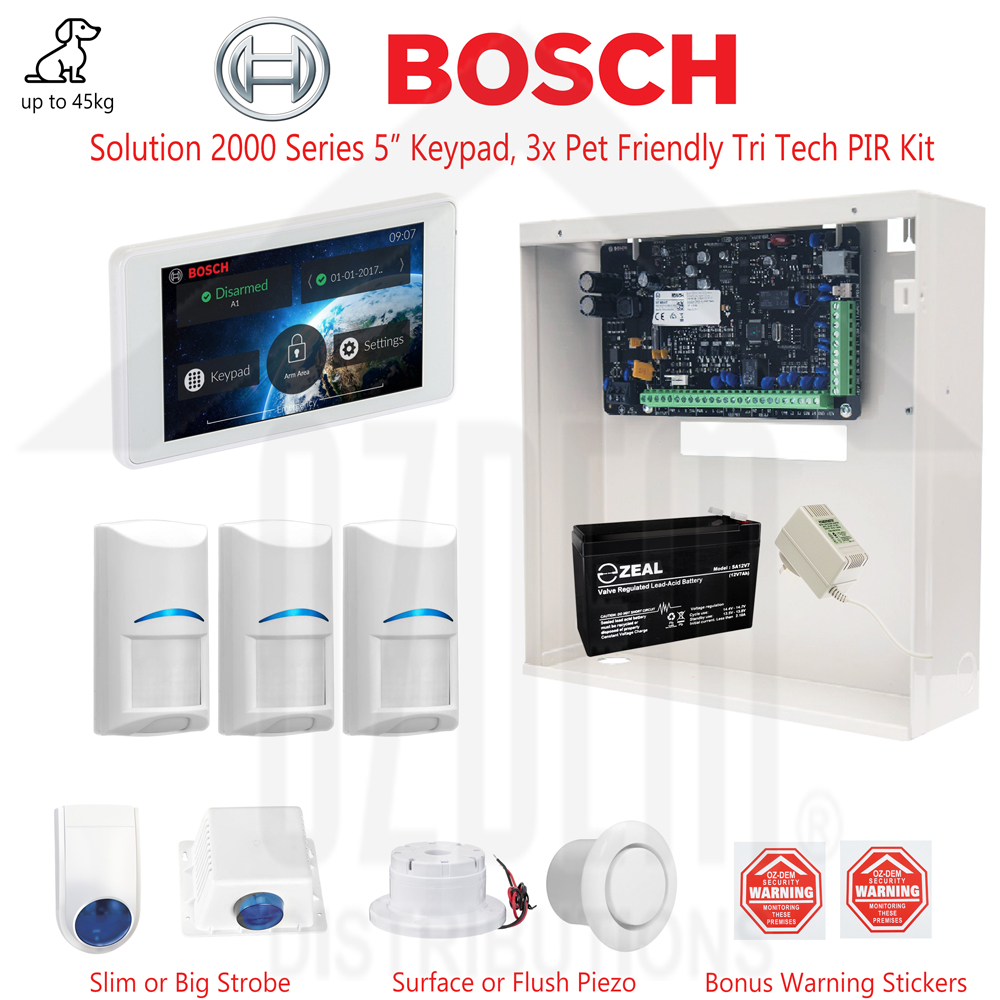

Bosch 2000 Series (8 Zone) Alarm Kit with 5″ TouchOne & 3x Bosch Tri Tech Gen2 PIRS (Pet Friendly) and Accessories

Product Description

Specifications

Model Number: S2K-TS-TRITECH-3-PET

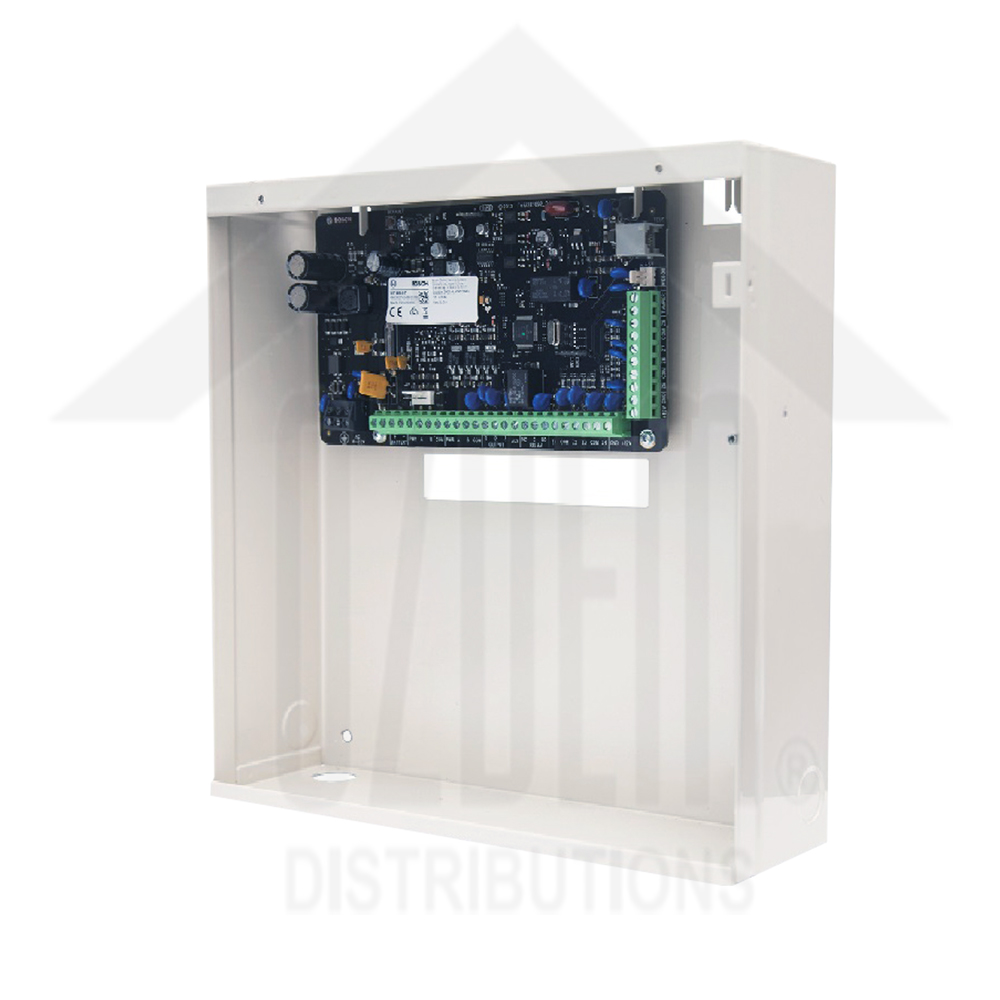

Solution 2000 Series Panel

Power Requirements
Primary	250 VAC / 18 VAC at 1.3A supplied by TF008 Plug Pack

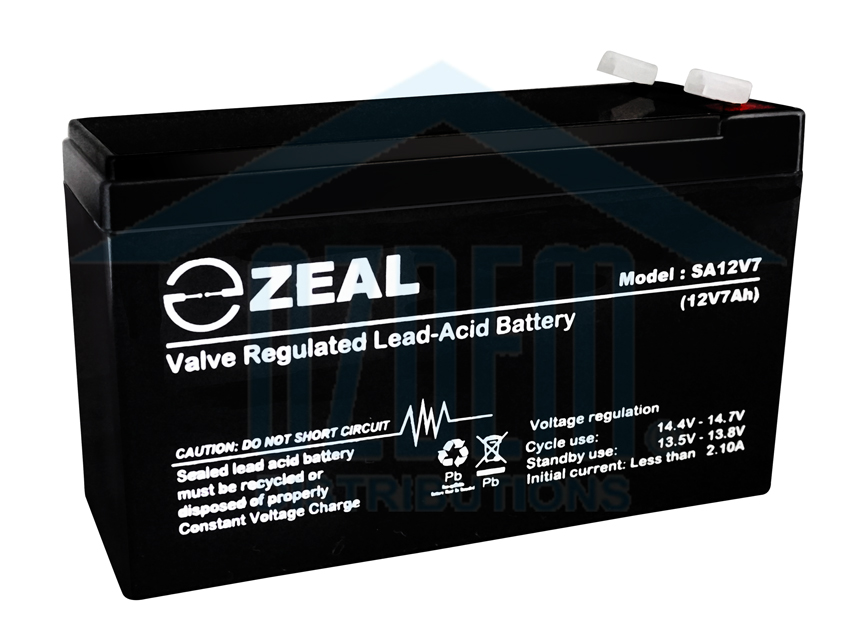

Secondary	12 VDC, 6.5Ah from rechargeable sealed lead/ acid battery
Communications
Communications	CID, SIA, Email, Domestic Dialing, CSV-IP, Push Notification Requires B426-M IP Communications Module or B450-M Universal Communications Module
Environmental Considerations
Temperature	0o to +45oC
Relative Humidity	10% to 95% non-condensing
Enclosure
Dimensions (H x W x D) (packed in carton)	306 x 262 x 84mm
Weight	2.5kg
Warranty	3 years

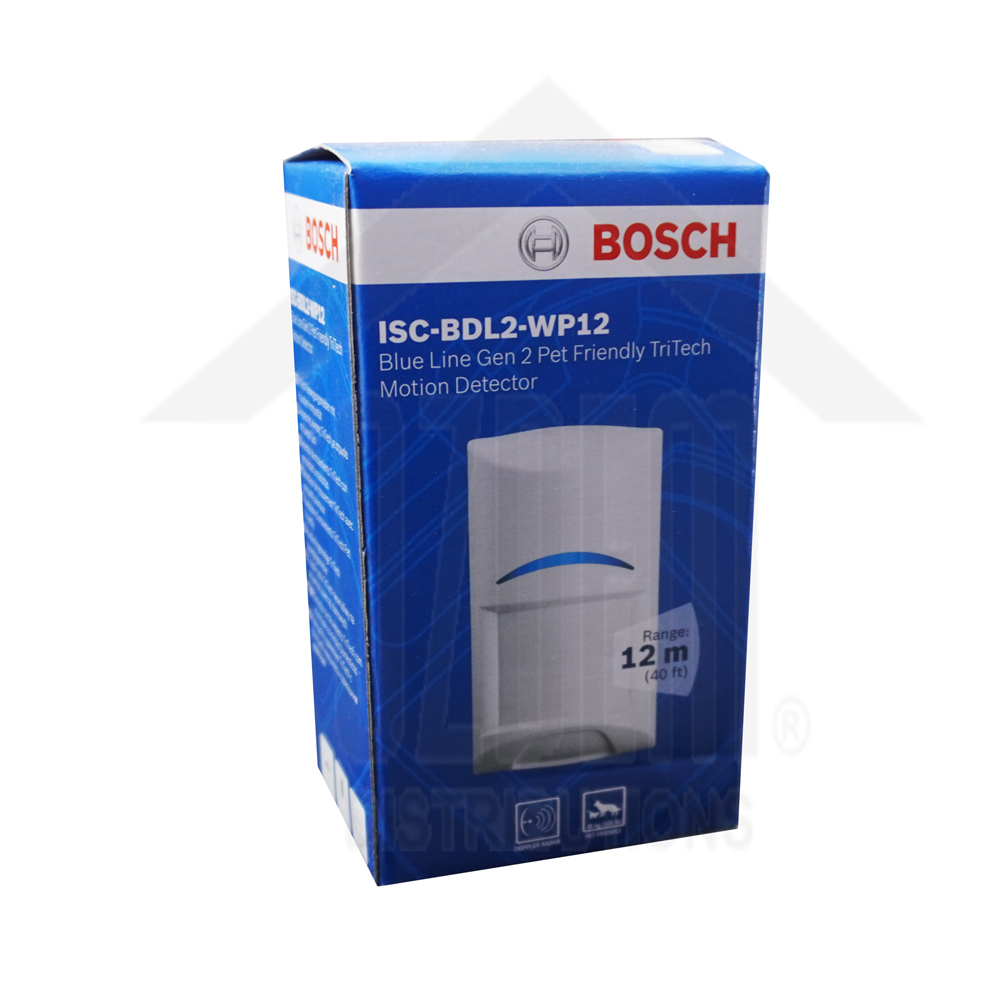

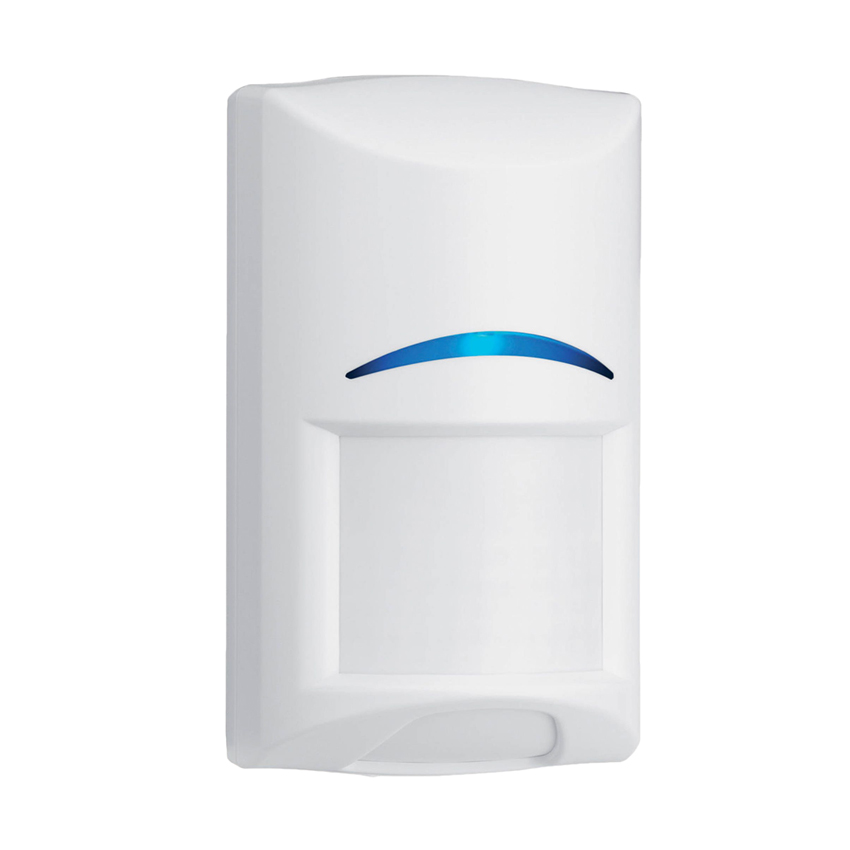

Bosch Blue Line Gen2 Tri Tech Pet Friendly PIR Motion Detector (ISC-BDL2-WP12G)

Mechanical
Colour	White
Dimensions	105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
Material	High-impact ABS plastic
Outputs
Relay	Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.
Electrical
Current (alarm/standby)	10 mA at 12 VDC
Voltage (operating)	9 VDC to 15 VDC
Environmental
Pet Immunity1	One or two pets up to 45 kg (100 lb) or numerous rodents
Relative Humidity	0 to 95%, non-condensing For UL Listed product installations 0 to 85%, non-condensing
Temperature (operating)	G models = - 20°C to + 55°C (- 4°F to + 131°F)

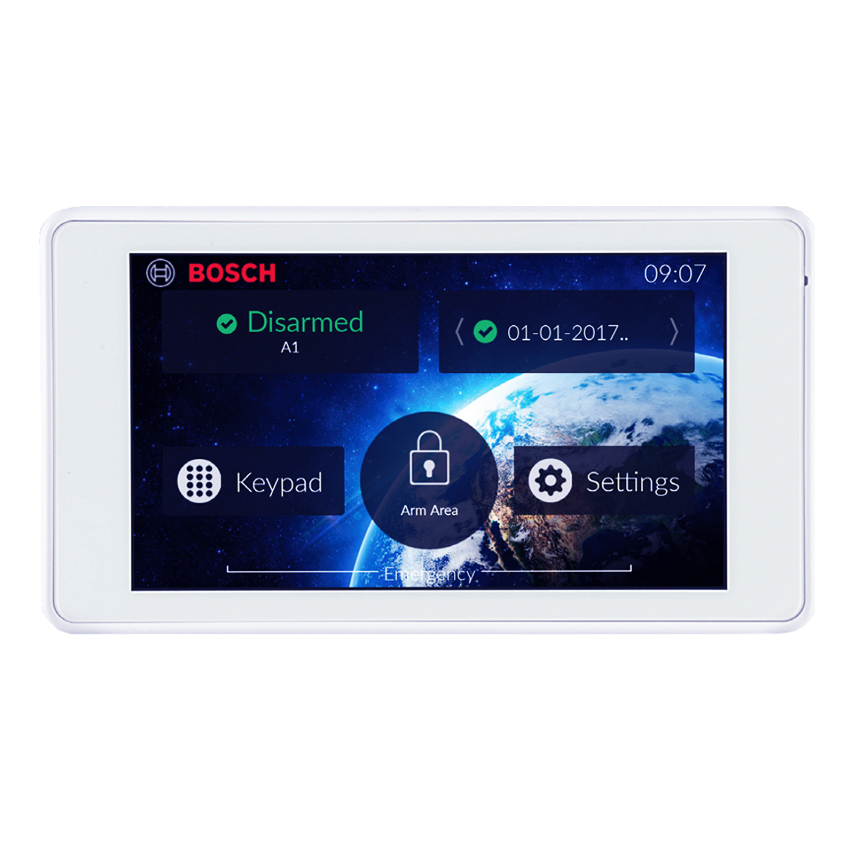

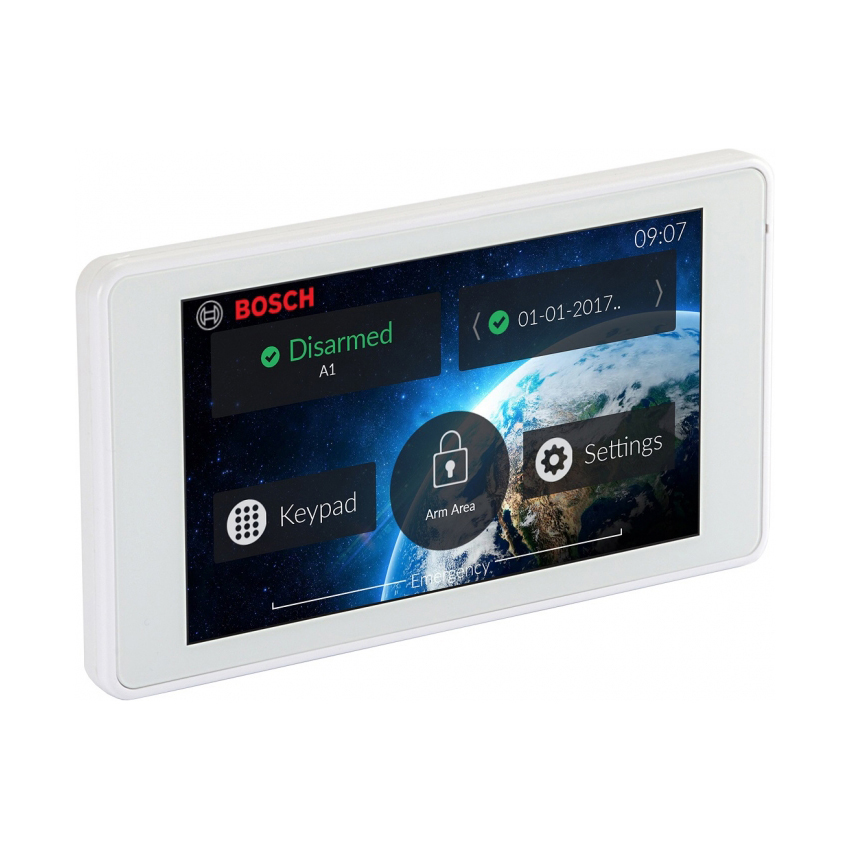

Bosch White TouchOne Mini 5" Code Pad for 3000 (IUI-SOL-TS5)

Dimensions	145 mm x 80 mm x 13.6 mm
Maximum screw size	6G pan head
Power (Operating)	12VDC 600mA (peak)
LCD	5” HD WXGA 1280 px x 720 px, IPS, 400 nits.
Touch Panel	5 point multi-touch, capacitive, GF glass touch sensor.
SD Card	MicroSD (SDHC) 2GB to 32GB
