Dahua 2MP 2 Wire IP Intercom Kit (KTD01L)

Product Description

Specifications

Model Number: KTD01L

Technical Speciﬁcation

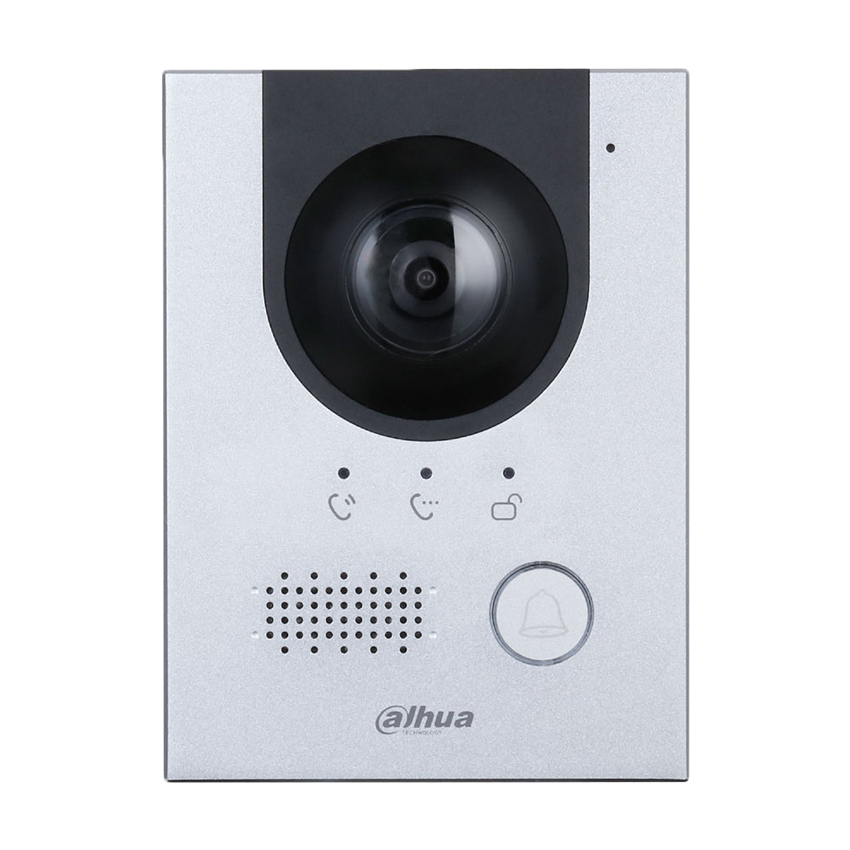

DHI-VTO2202F-P-S2

System

Main Processor

Embedded processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P

Basic

Camera

1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera

Field of View

Horizontal: 160°; vertical: 87.1; diagonal:176.7°

Focal Length

1.9 mm

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265

Video Resolution

50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)

Port

RS485

Alarm Output

Power Output

1-ch 12 VDC 100mA

Exit Button

Door Status Detection

Lock Control

Network Port

One RJ45 10M/100M network port

General

Appearance color

Silver

Power Supply

Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE

Power Adapter

Optional

Installation

Flush/surface mount

Certifications

CE; FCC; UL

Accessory

Flush/surface mount

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IK07; IP65

Operating Temperature

–30°C to +60°C (–22°F to 140°F)

Operating Humidity

10%–90% (RH, non-condensing)

Operating Altitude

0 m–3000 m

Power Consumption

≤ 12W

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.4 kg (0.88 lb)

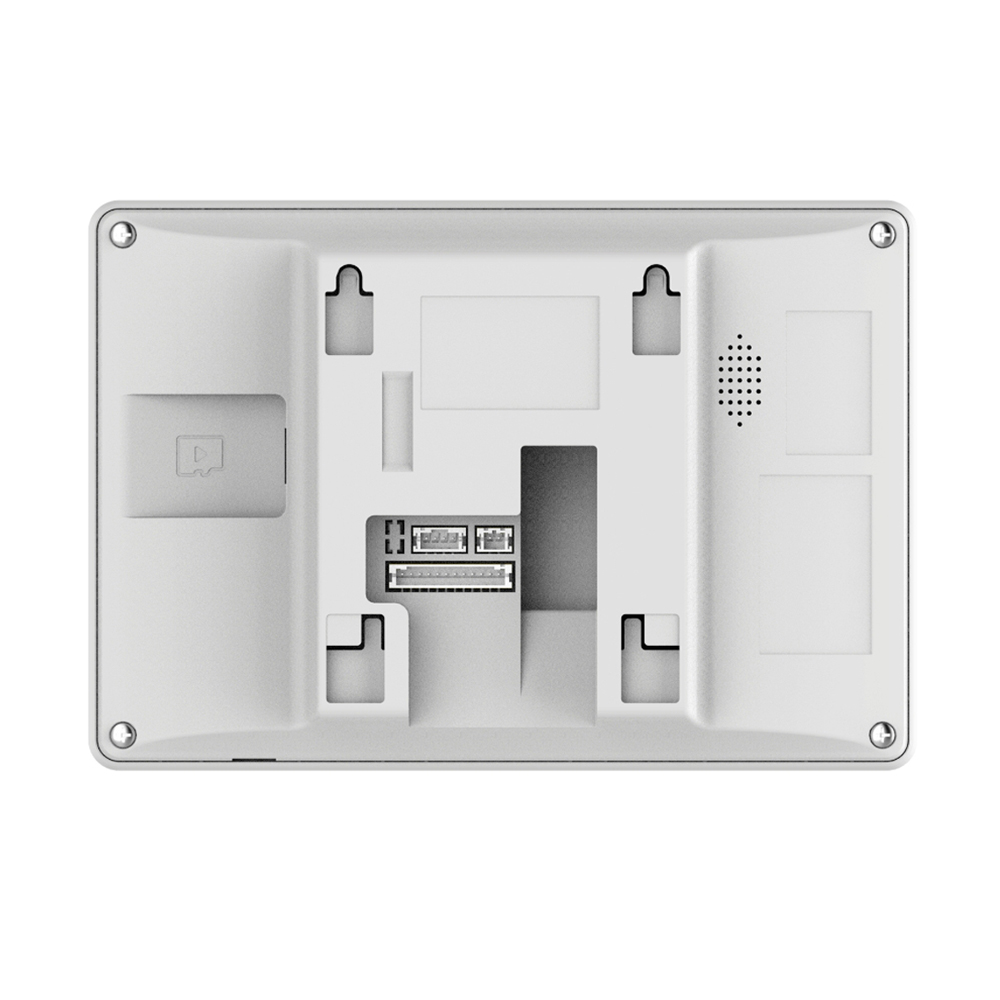

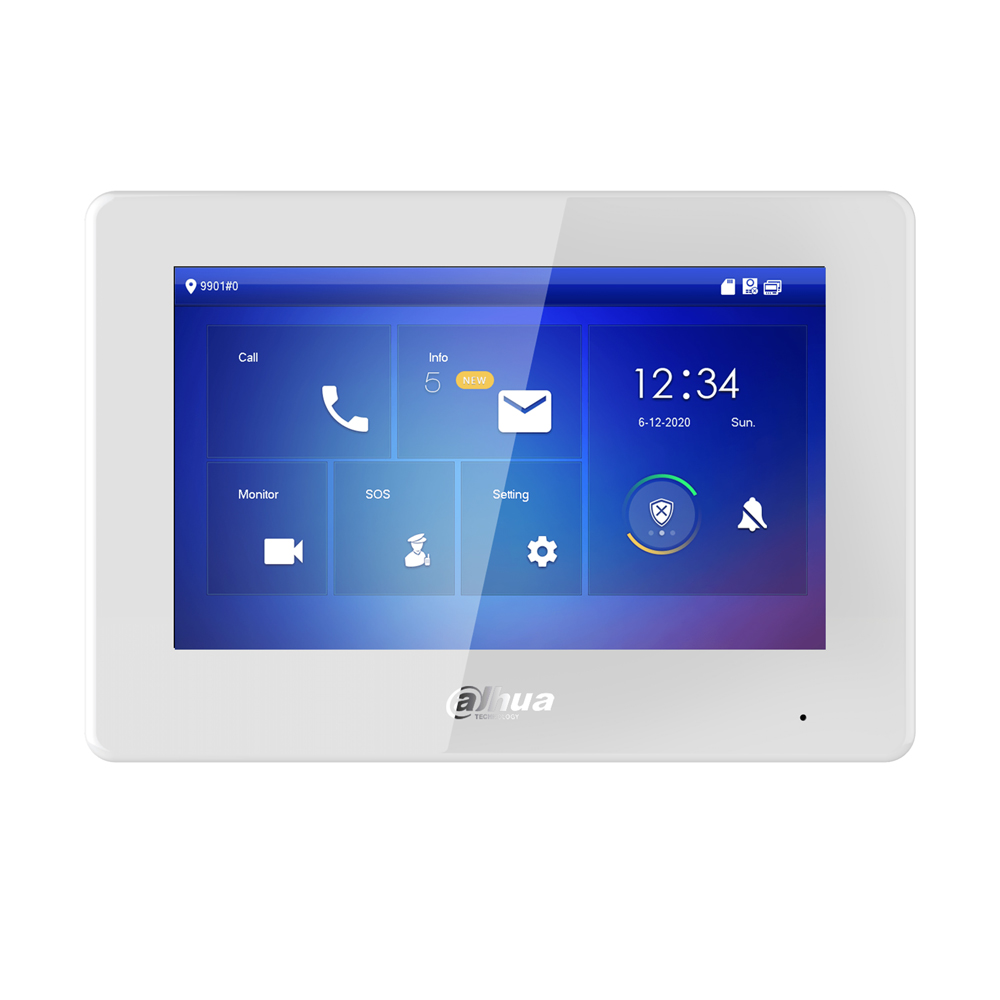

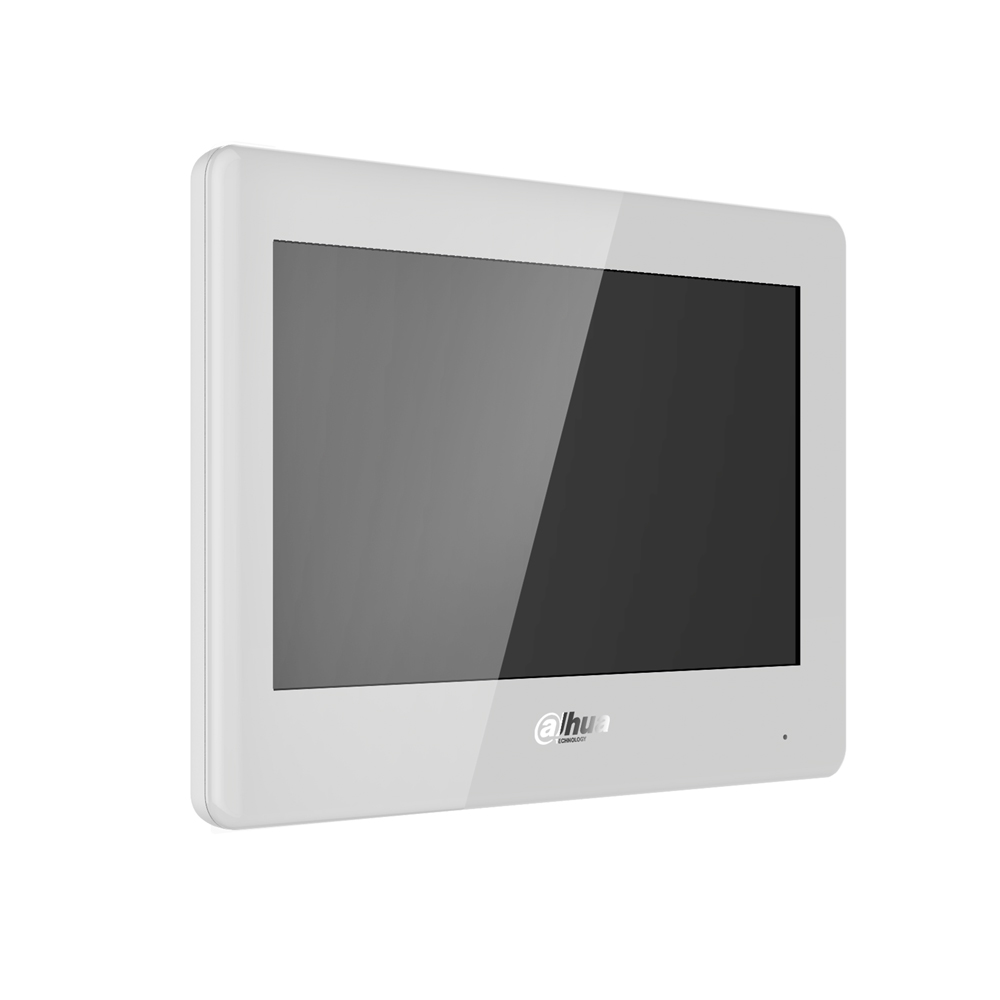

DHI-VTH5422HW

System

Main Processor

Embedded processor

Operating System

Embedded Linux Operation System

Button Type

Touch keypad

Interoperability

ONVIF

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive

Display Screen

7-inch TFT

Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression

Audio Bit Rate

16 KHz, 16 Bit

Communication Mode

2-wire

Information Release

Supports viewing text announcement from the center ( insert an SD card to receive and view pictures)

Leave Videos

Yes (SD card inserted in VTH is needed)

Storage

Extensible 64 GB Micro SD card

Port

RS-485

Alarm Input

Alarm Output

Power Output

1, 12V/100mA

Door Bell

Yes, reusing any alarm input port

Network Port

One 2-wire port;
One 10 Mbps/100 Mbps Ethernet port;
Use one or the other

General

Casing

PC + ABS

Appearance color

White

Power Supply

Dahua 2-wire switch (max. power supply distance 50 m)
Standard PoE

Power Adapter

Optional

Installation

Surface mount

Certifications

CE; FCC; UL

Accessory

Bracket (standard)
Alarm ribbon cable (standard)

Product Dimensions

189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")

Operating Temperature

–10°C to +55°C (14°F to 131°F)

Operating Humidity

10%–95% (RH, non-condensing)

Operating Altitude

0 m–3000 m

Power Consumption

Standby ≤ 2W, working ≤ 6W

Net Weight

0.388 kg (0.86 lb)

Gross Weight

0.74 kg (1.63 lb)

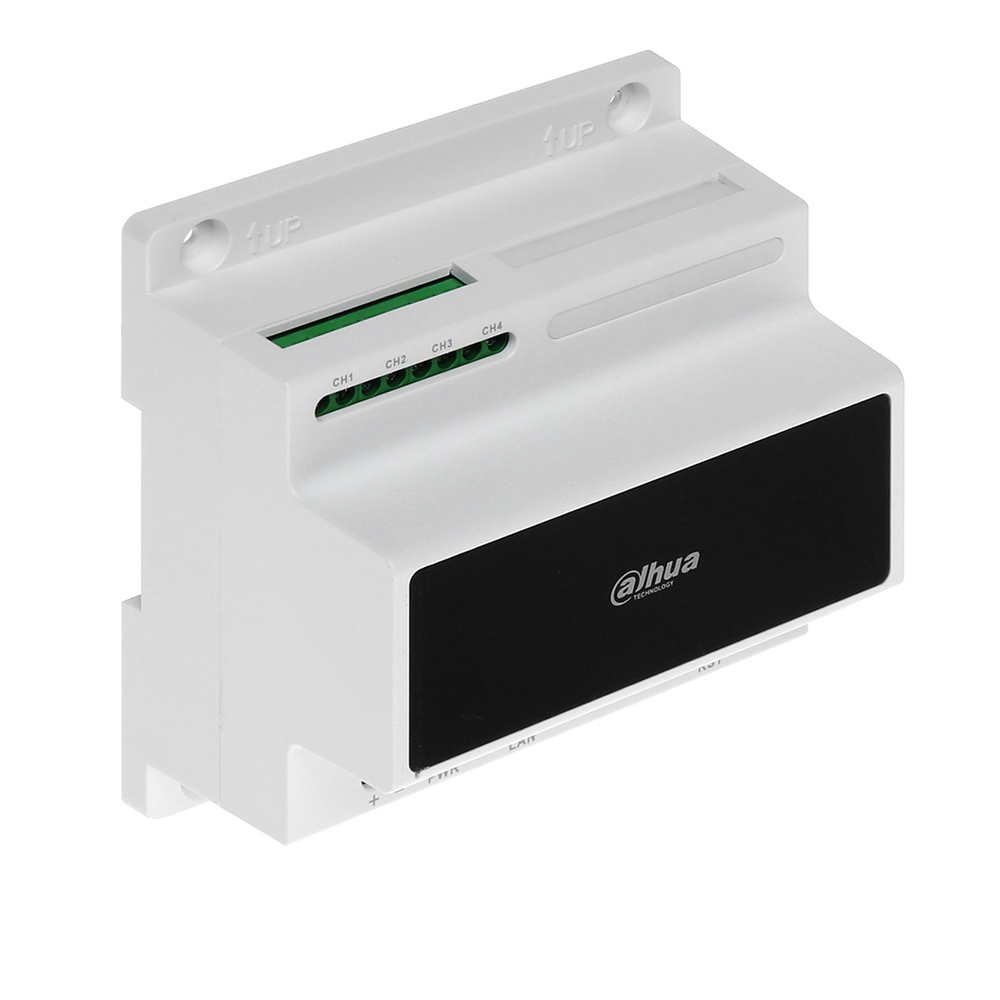

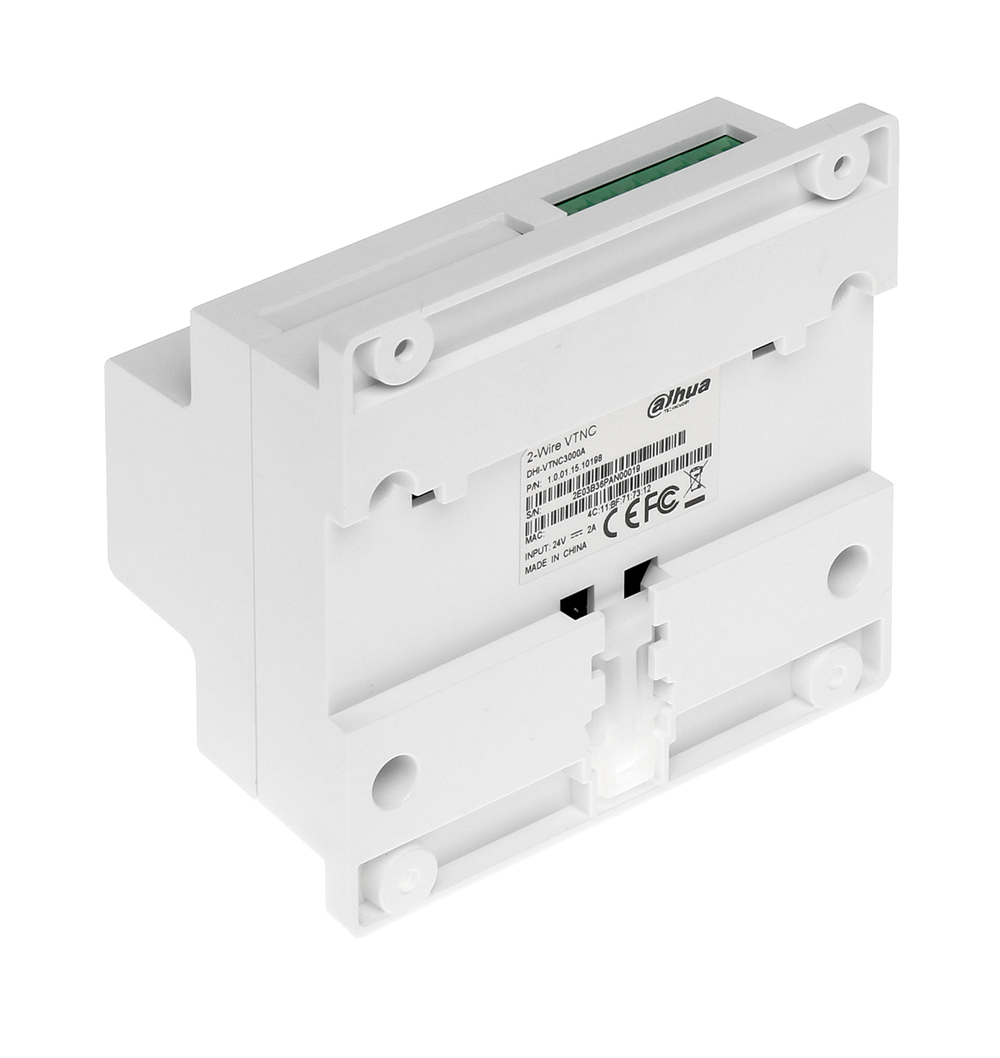

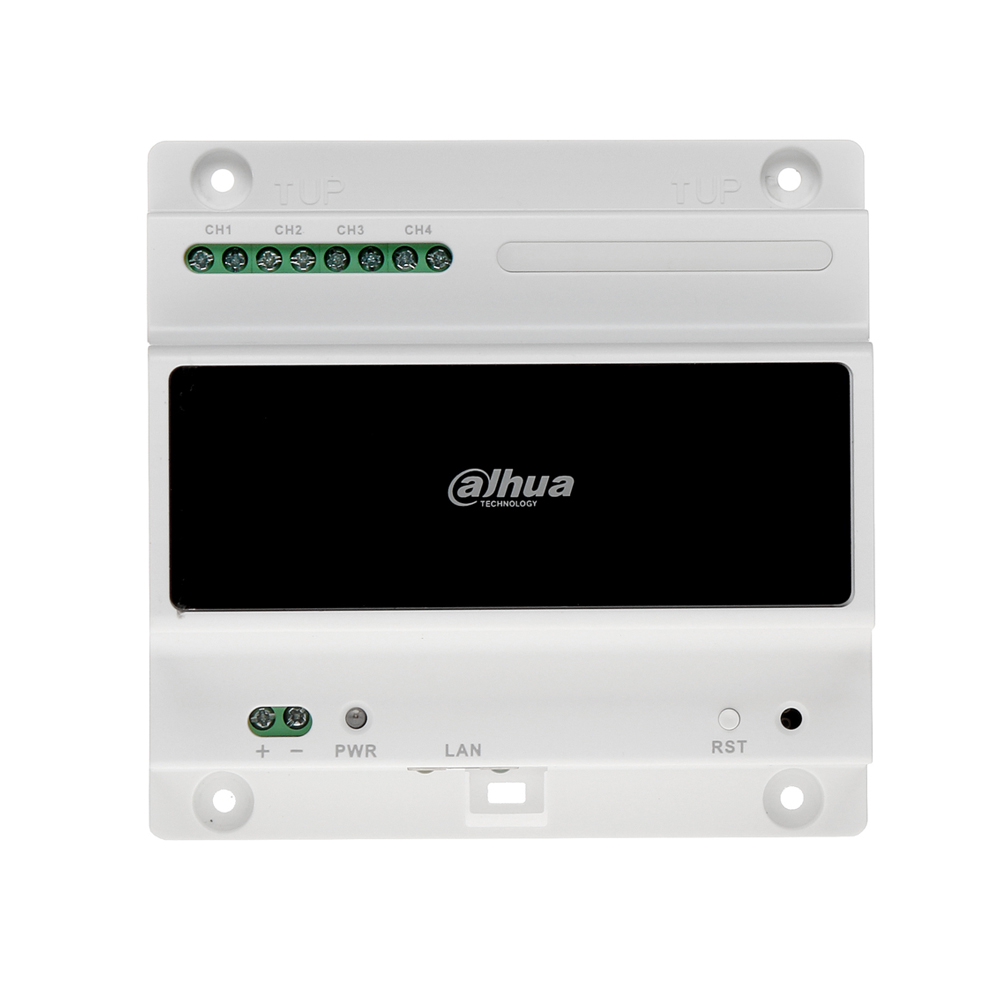

DHI-VTNS1001B-2

Basic

Status Indicator Light

Communication Mode

2-wire

Cascade Ability

Port

2-wire port

RJ45

General

Casing

PC + ABS

Appearance color

White

Power Supply

DC 48V 1A–3A

Power Adapter

Optional

Installation

Guide rail mount

Certifications

CE; FCC; UL

Accessory

Power converter cable

Product Dimensions

131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")

Operating Temperature

–10°C to +55°C (14°F to 131°F)

Operating Humidity

10%–95% (RH, non-condensing)

Operating Altitude

0–3000 m (0–9842.52 ft)

Power Consumption

≤ 15W (KIT)

Net Weight

0.24 kg (0.53 lb)

Gross Weight

0.39 kg (0.86 lb)
