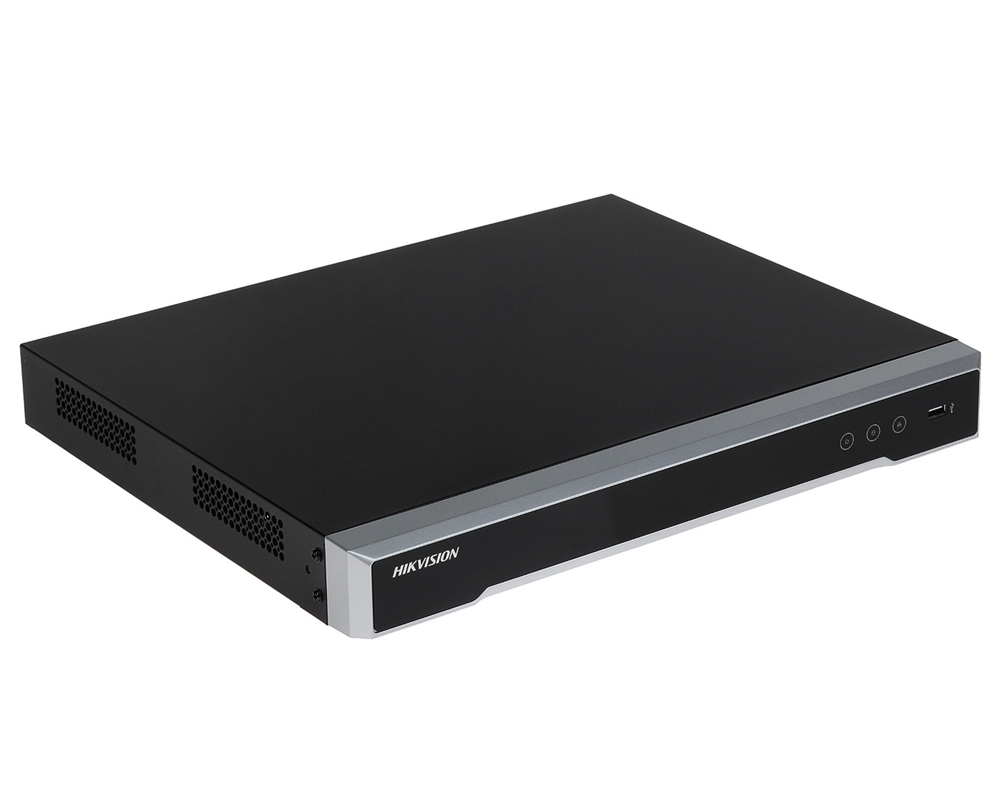

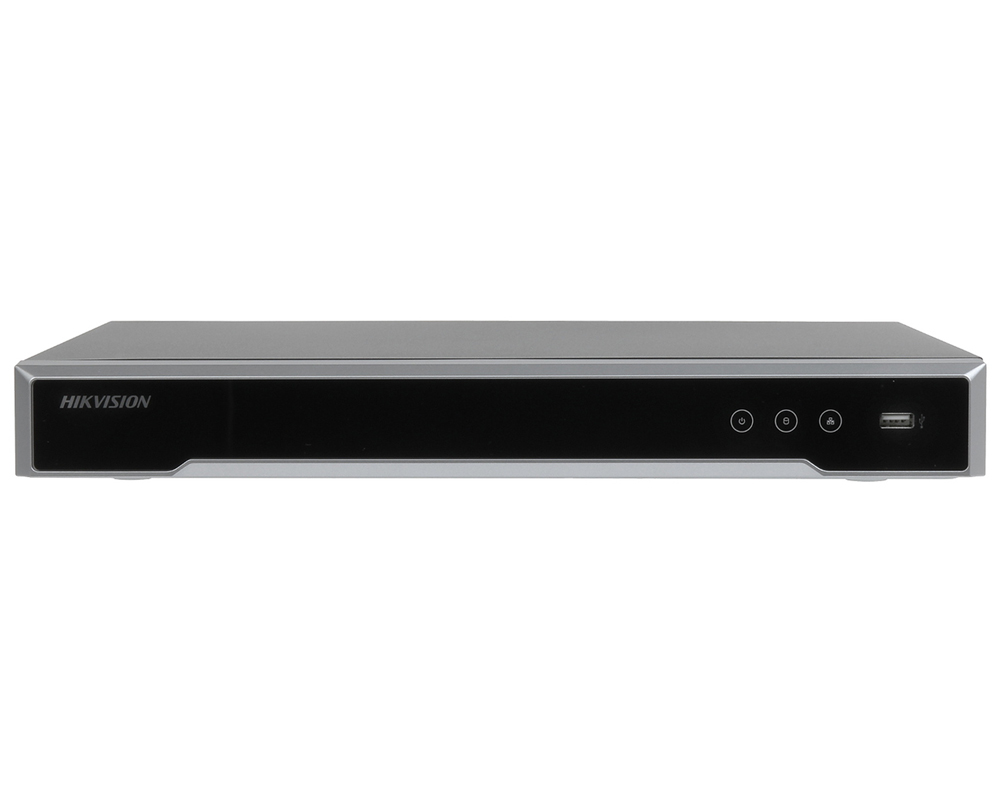

HIKVISION 16 Channel 2 Bay NVR with HDD Options (H.265+, Up to 12MP Camera)

Product Description

Specifications

Model Number: DS-7616NI-I2/16P

Audio/Video Inputs/Outputs

IP Video Inputs	16 Up to 12 MP Resolution
HDMI Interface	1
VGA Interface	1
Recording Resolutions	12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	60 Hz: 1920 x 1080p, 1280 x 1024, 1280 x 720, 1024 x 768
Two-Way Audio	1 x RCA Input (2.0 V p-p, 1 kOhm) 1 x RCA Output (Linear, 1 kOhm)

Decoding and Playback

Decoding Formats	H.265, H.265+, H.264, H.264+, MPEG-4
Live View / Playback Resolutions	12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network

Bandwidth	Incoming: 160 Mb/s Outgoing: 80 Mb/s
Protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

HDD

HDD Capacity	2 x SATA Ports (8 TB Capacity per Disk)
HDD Included	HDDs Available Separately

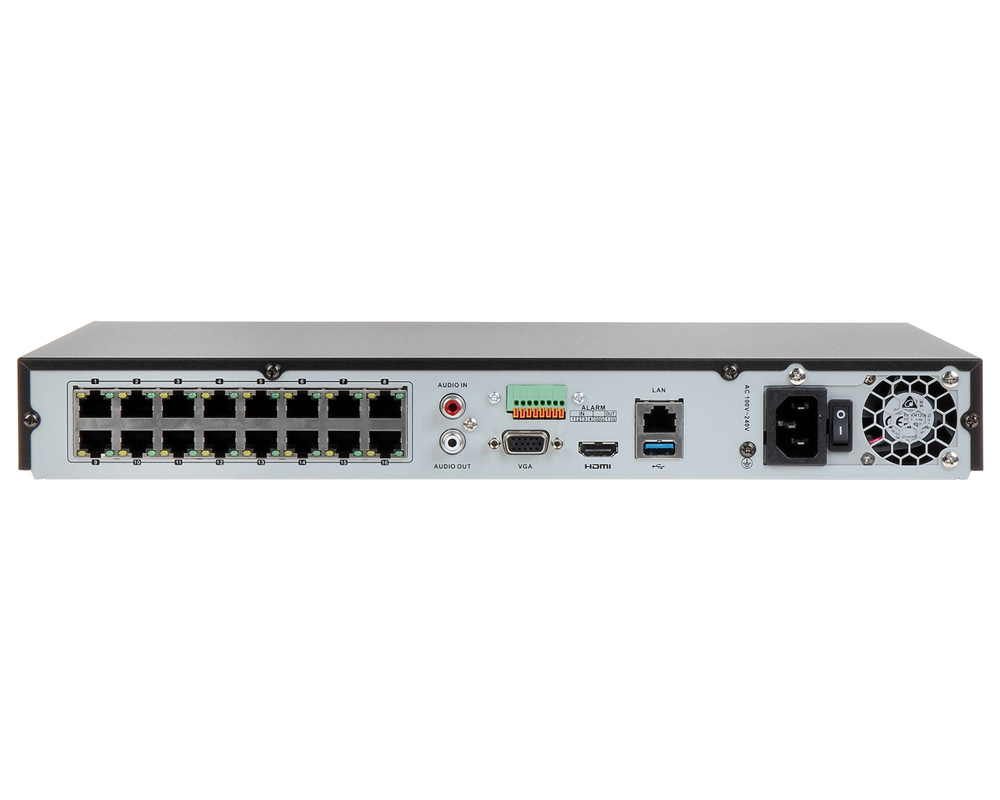

Interface

Network Interface	1 x RJ45 1000M Self-Adaptive Ethernet
USB Interface	2 x USB 2.0
PoE Interface	16 x RJ45 100M Self-Adaptive Ethernet (≤150 W, IEEE 802.3af/at)
Alarm	1 x Input 1 x Output

General

Power Supply	100 to 240 VAC
Power	≤280 W
Power Consumption	≤15 W (without HDD)
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90% Humidity (Non-Condensing)
Chassis	1 RU
Dimensions (W x D x H)	15.2 x 12.4 x 2" / 385 x 315 x 52 mm
Weight	≤6.6 lb / 3 kg (without HDD)

Packaging Info

Package Weight	8.065 lb
Box Dimensions (LxWxH)	17.2 x 15.3 x 5.2"
