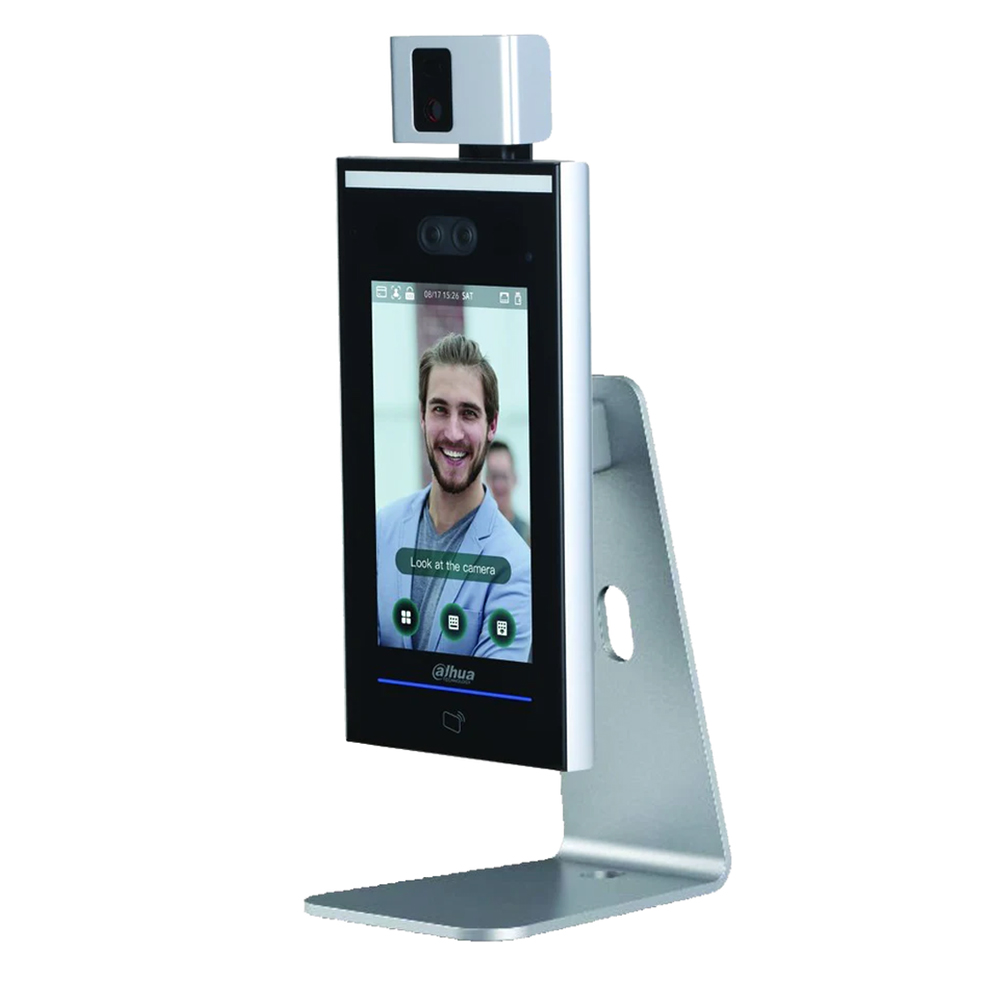

Dahua 7" Face Recognition, Access Control Desk Mount Terminal

Product Description

Specifications

Model Number: ASI7213X-T1-1-DESK

System
Main Processor	Embedded Processor
Network Protocol	IPv4, RTSP, RTP, TCP, UDP, P2P
OSDP Protocol	Yes
Interoperability	ONVIF; CGI
SDK and API	Support SDK
Basic
Display Screen	7-inch display screen
Screen Type	Capacitive screen
Resolution	600 (H) × 1024 (V)
Camera	1/2.8" 2MP CMOS high definition WDR dual camera
WDR	120 dB
Light Compensation	Auto white light Auto IR light
Status Indicator	1 indicator light. Red: Error; Green: Normal; Blue: Working
Voice Prompt	Yes
Casing	Aluminium alloy/tempered glass/PC
Function
Unlock Mode	Card/Remote/Password/Face unlock and unlock through their combinations Face unlock under temperature monitoring mode
Card Type	IC card
Period List	128
Holiday Period	128
First-Card Unlock	Yes
Remote Verification	Yes
Peripheral Card Reader	1 RS-485, 1 Wiegand
Multiple Authentication	Yes
Real-Time Surveillance	Yes
Web Configuration	Yes
Performance
Card Reading Distance	3 cm
Face Recognition Distance	Face-camera distance: 0.3 m–2.0 m Human height: 0.9 m–2.4 m
Face Verification Accuracy	99.5%
Face Recognition Time	0.2 s
Temperature Monitoring Range	30°C to 45°C
Temperature Monitoring Error	≤ 0.5°C
Temperature Monitoring Distance	0.3 m–1.2 m
Temperature Monitoring Height	135 cm–185 cm (when temperature monitoring distance is 0.5 m) 120 cm–210 cm (when temperature monitoring distance is 1.2 m)
Capacity
User Capacity	100, 000
Face Image Capacity	100, 000
Card Capacity	100, 000
Password Capacity	100, 000
Record Capacity	300, 000 records
Port
RS-485	1
Wiegand	1 (input or output)
USB	1 USB2.0 port
Network	1 1000Mbps network port 1 100Mbps network port
Alarm Input	2 (Switch quantity)
Alarm Output	2 (Relay)
Alarm Linkage	Yes
Exit Button	1
Door Status Detection	1
Lock Control	1
Alarm
Anti-passback	Yes
Tamper	Yes
Duress	Yes
Door Sensor Timeout	Yes
Intrusion	Yes
Illegal Card Exceeding Threshold	Yes
General
Power Adapter	Included
Power Supply	12V 2A DC
Power Consumption	≤ 24W
Product Dimensions	302.6 mm × 129.0 mm × 32.0 mm (11.91" × 5.08" × 1.26")
Packaging Dimensions	Controller packaging: 380 mm × 235 mm × 124 mm (14.96" × 9.25" × 4.88") Protective case: 494 mm × 402 mm × 275 mm (19.45" × 15.83" × 10.83")
Operating Temperature	Temperature monitoring mode disabled: –10°C to +55°C (+14°F to +131°F) Temperature monitoring mode enabled: +15°C to +30°C (+59°F to +86°F)
Operating Humidity	0%RH–90%RH (non-condensing)
Operating Environment	Indoor
Gross Weight	2.2 kg (4.85 lb)
Installation	Wall mount
Certifications	CE/FCC
