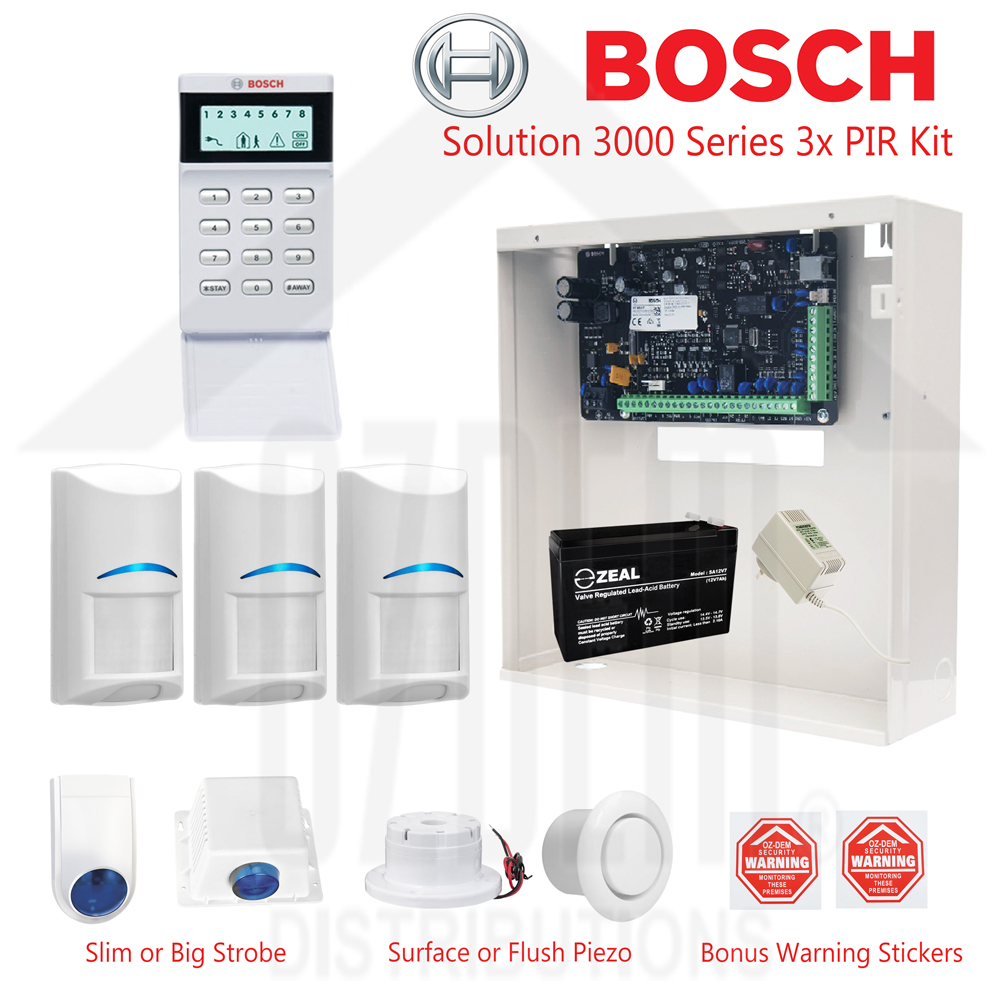

Bosch 3000 Series (16 Zone) Alarm Kit with Icon Keypad, 3x Bosch Blue Line Gen2 PIRS (Non Pet Friendly) and Accessories

Product Description

Specifications

Model Number: S3K-LCD-PIR-3

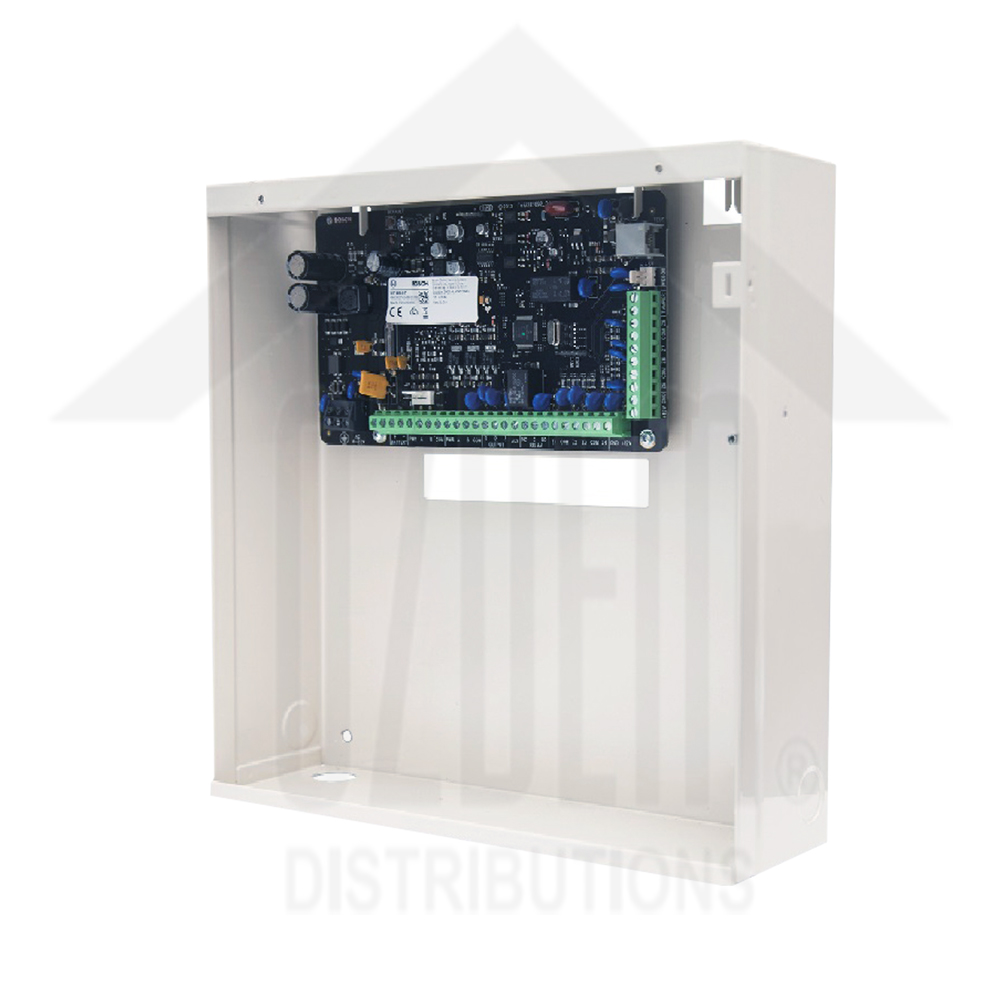

Solution 3000 Series Panel

Power Requirements

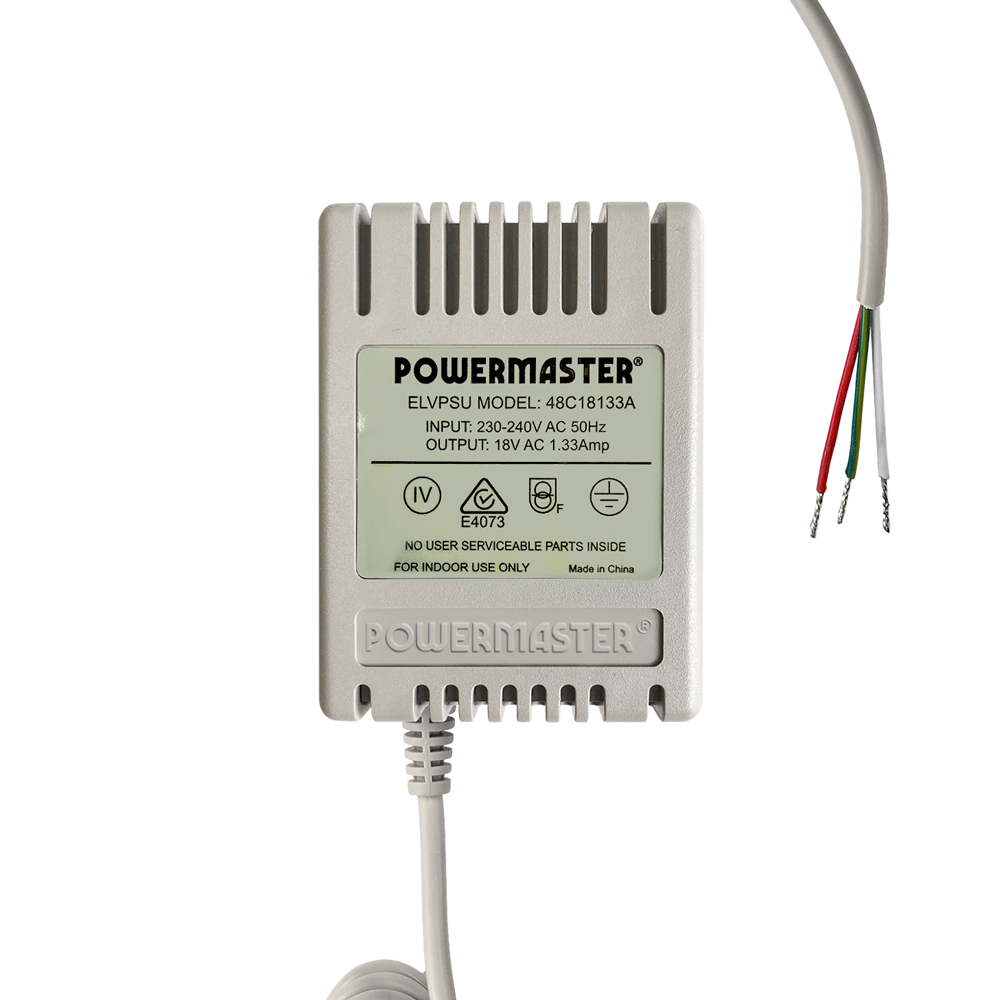

Primary	250 VAC / 18 VAC at 1.3A supplied by TF008 Plug Pack

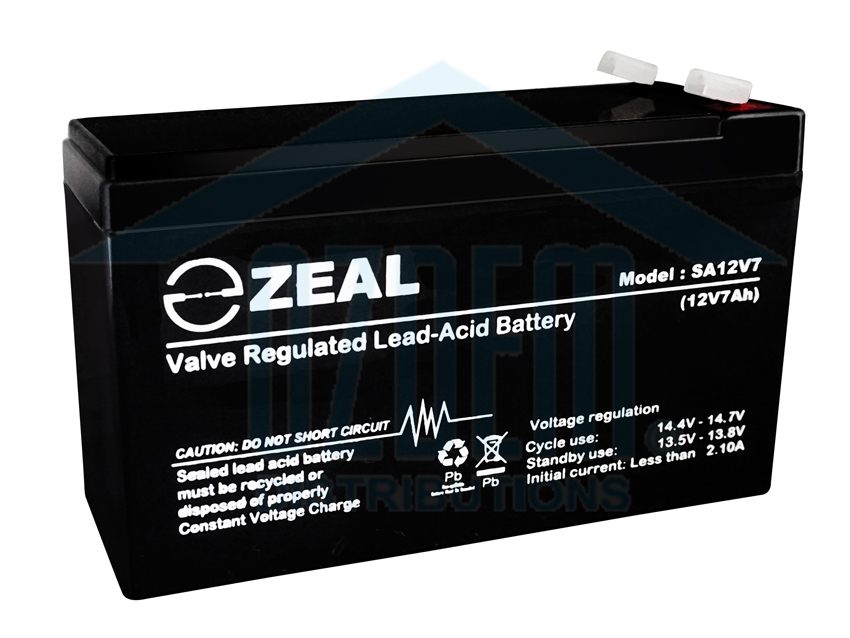

Secondary	12 VDC, 6.5Ah from rechargeable sealed lead/ acid battery
Communications
Communications	CID, SIA, Email, Domestic Dialing, CSV-IP, Push Notification Requires B426-M IP Communications Module or B450-M Universal Communications Module
Environmental Considerations
Temperature	0o to +45oC
Relative Humidity	10% to 95% non-condensing
Enclosure
Dimensions (H x W x D) (packed in carton)	306 x 262 x 84mm
Weight	2.5kg
Warranty	3 years

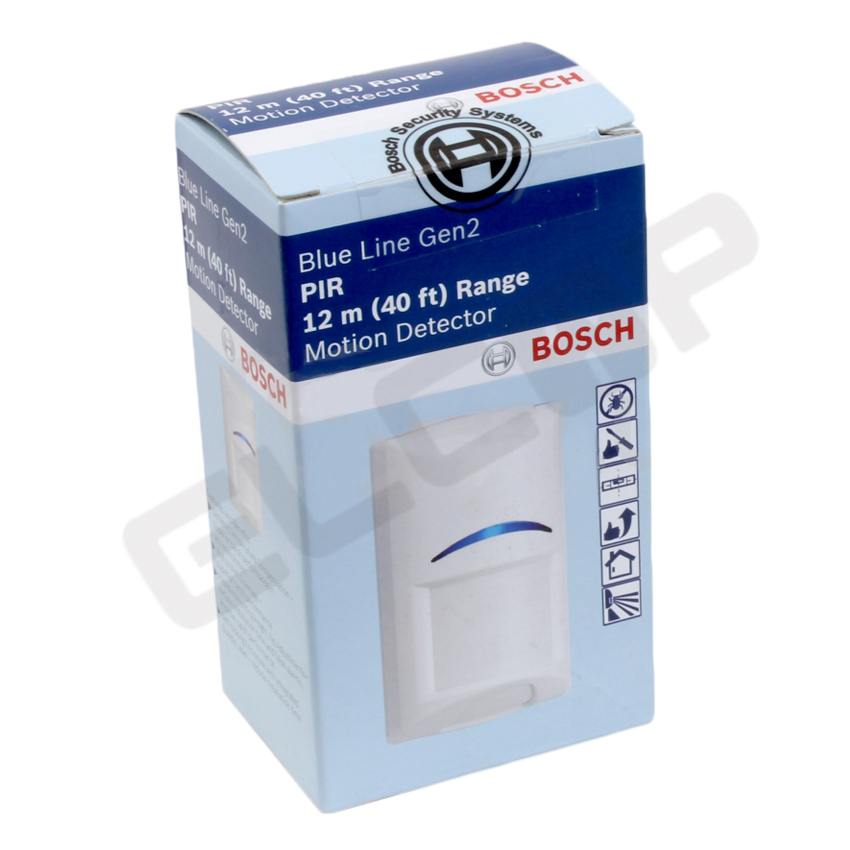

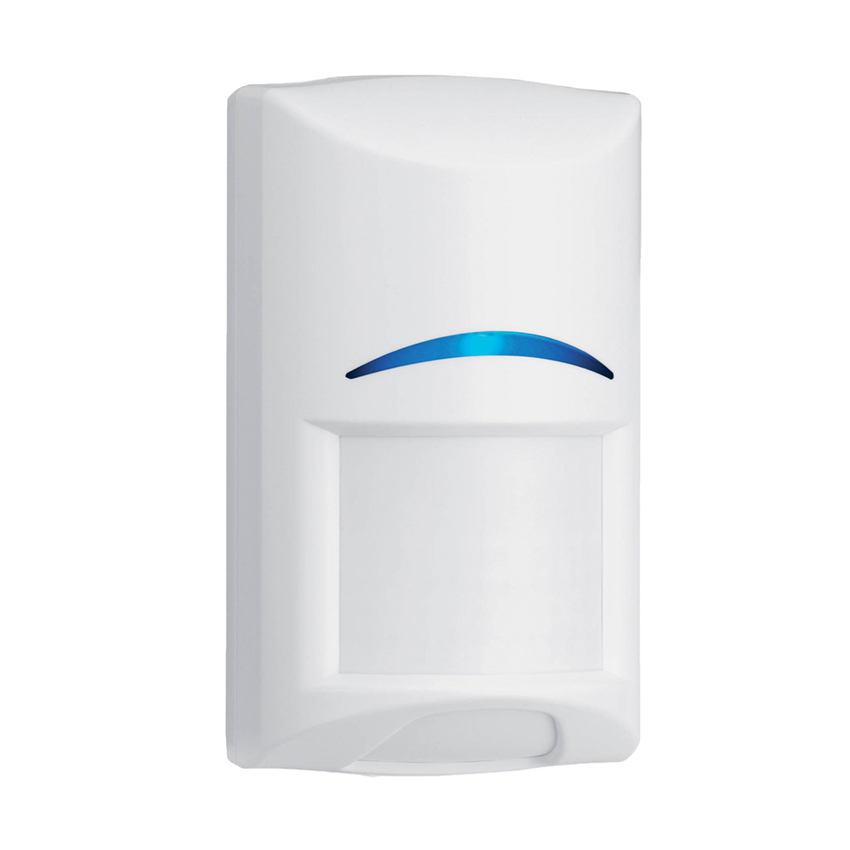

Blue Line Gen2 PIR Motion Detectors (ISC-BPR2)

Electrical
Current (standby/alarm):	10 mA at 12 VDC
Voltage (operating):	9 VDC to 15 VDC
Environmental
Environment	Complies with EN50130-5 Class II
Relative Humidity:	0 to 95%, non-condensing For UL Listed product installations, 0 to 85%, non-condensing
Temperature (operating):	-30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
Mechanical
Colour:	White
Dimensions:	105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
Material:	High-impact ABS plastic
Radio Frequency Interference (RFI) Immunity	No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
Outputs
Relay:	Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper:	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W

Others

Coverage	40 x 40' (12 x 12 m)
Mounting Height	Recommended: 7.5 to 9' (2.2 to 2.8 m)
Material	High-impact ABS plastic

Bosch ICON Keypad (IUI-SOL-ICON)

Dimensions	132 mm x 74 mm x 25 mm
Voltage	12 VDC norminal
Temperature (storage)	0°C to +50°C
Relative humidity	20% to 90%, non-condensing
