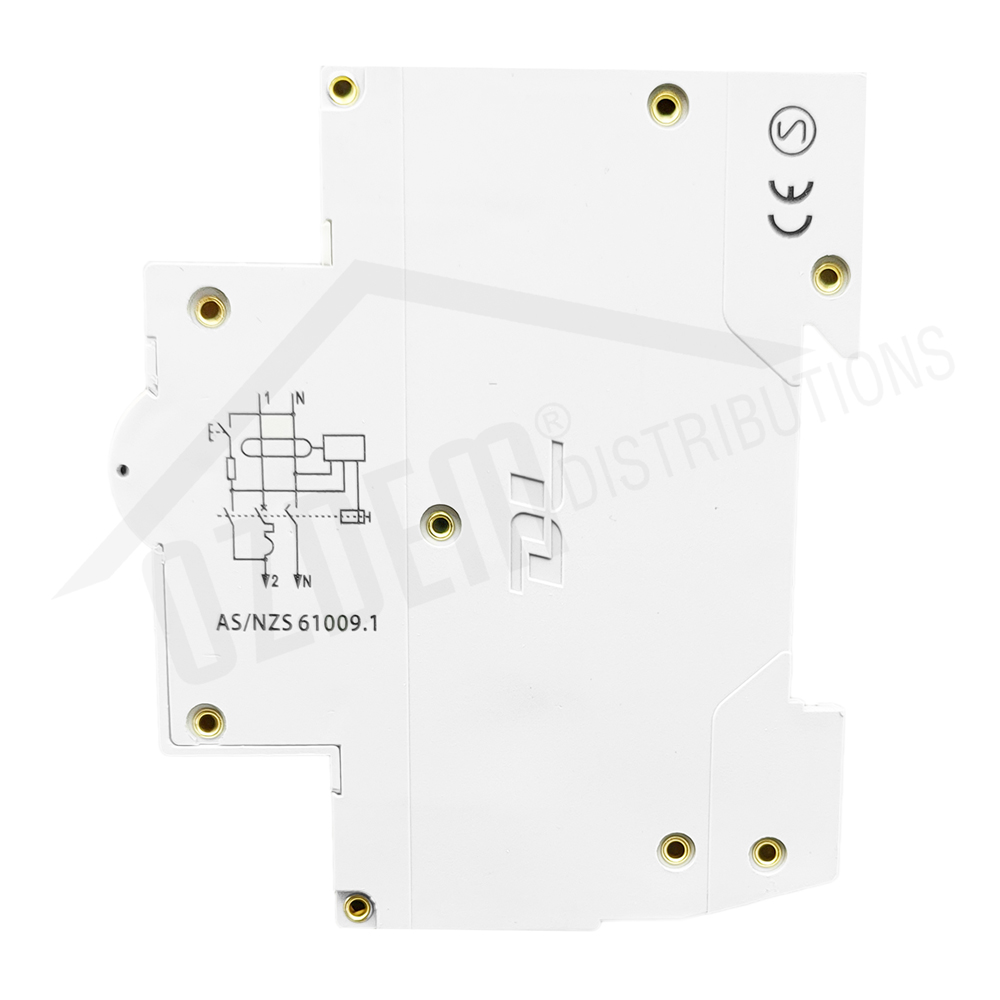

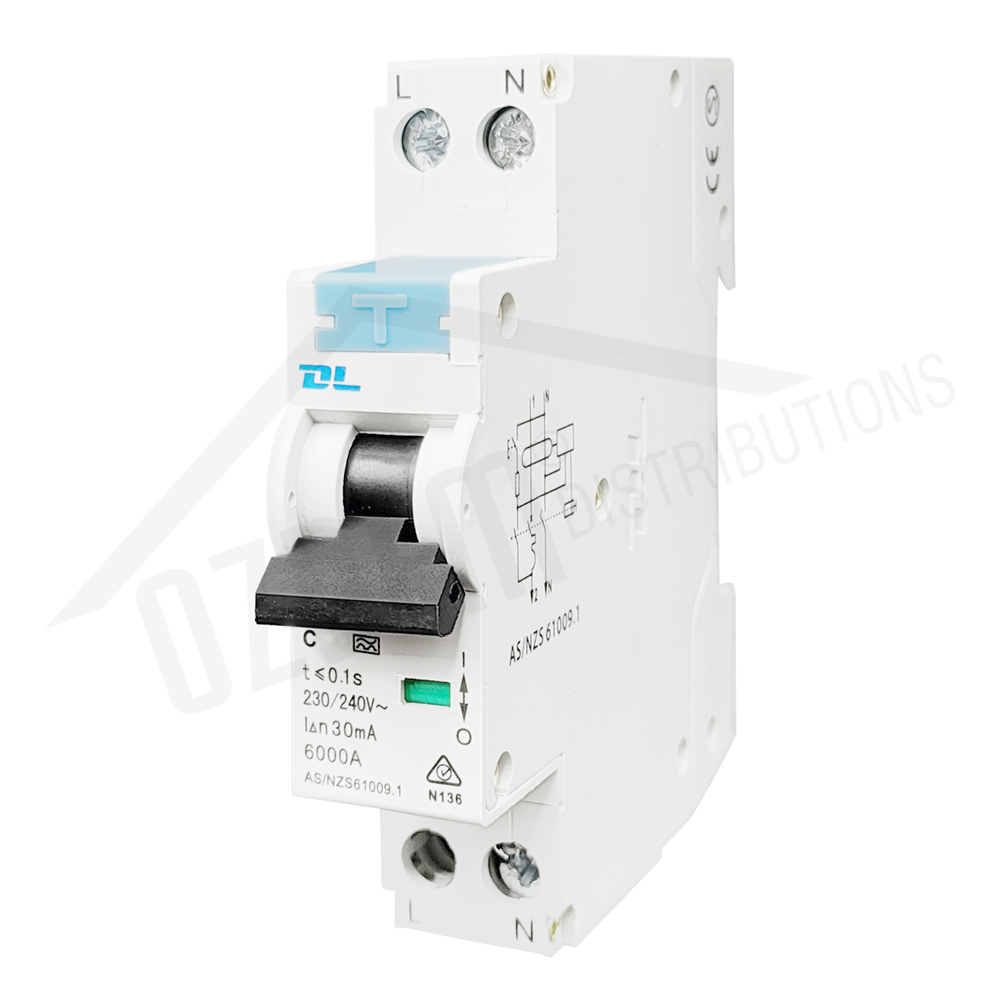

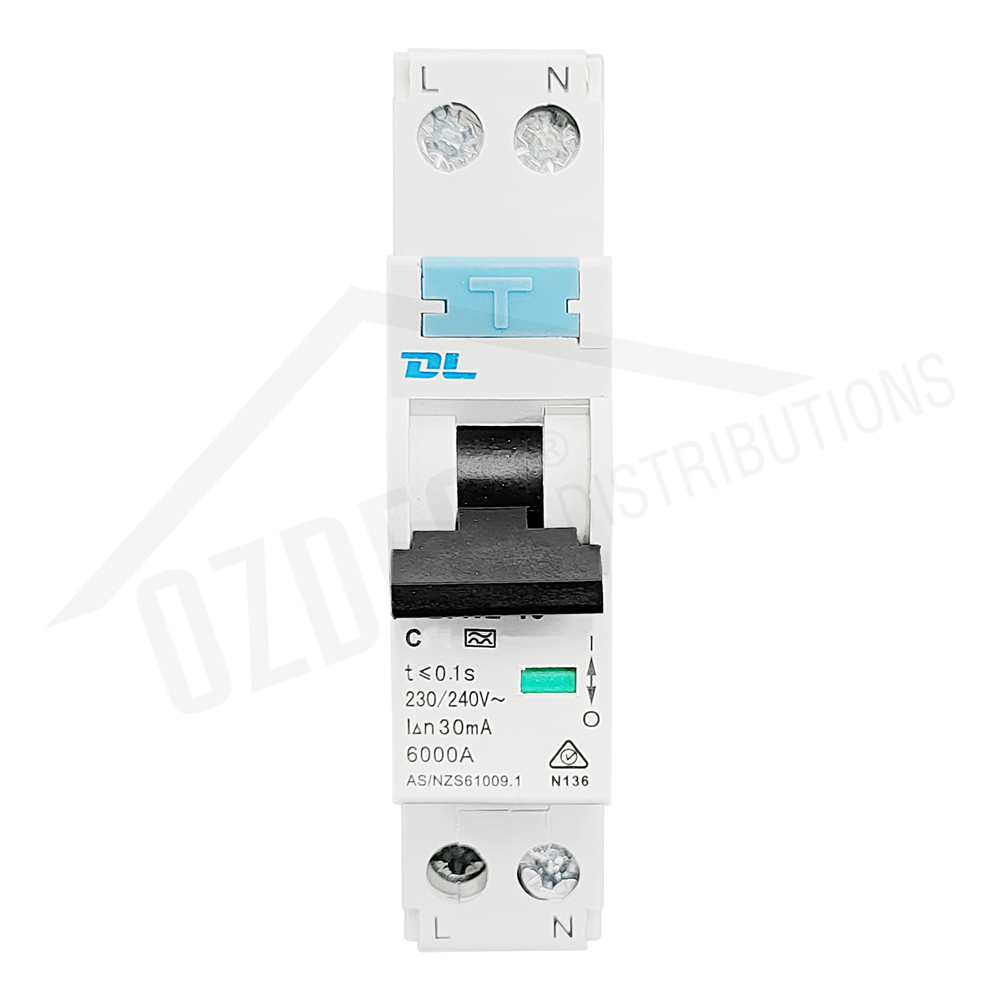

DL 1 Pole 32A 30mA 6kA RCBO Combo Type A

Specifications

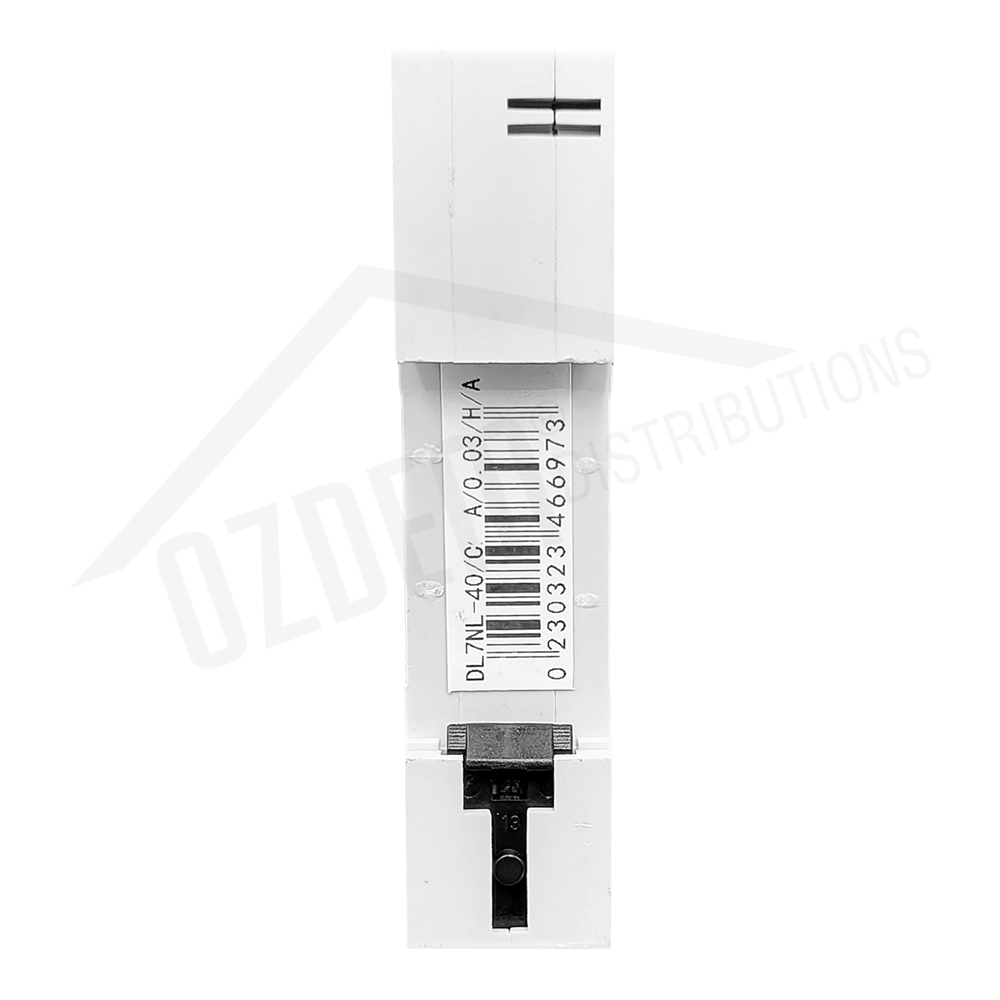

Model Number: DL7NL-40-A32

Technical Data	DRNL-40
Standards	AS/NZS 61009 - 1
Magnetic tripping characteristics	B ，C
Residual tripping characteristics	A
Rated current	32
Rated residual current	30 mA
Calibration temperature	30 ℃
Rated voltage 1P	240V
Frequency	50/60
Maximum service voltage	264
Tripping Duration:	Instaneous<0.1s
Power supply/LOAD	TOP OR BOTTOM NON POLARISED!
Selectivity class	3
Residual making and breaking capacity	2000A
Short circuit capacity	6000A
Isolation application (IEC 60947-2)	Yes
Insulation resistance (Mohm)	1,000
Insulation voltage (V)	500
Dielectric rigidity (V)	2,500
Vibration resistance	1.5g
Endurance (operations) electrical	>6,000
Mechanical	>20,000
Protection degree outside	IP20
inside enclosure	IP40
Self extinguishing degree (UL 94)	V2
Tropicalisation (IEC 60068-2)	+55 ℃/95% RH
Operating temperature	-5/+55 ℃
Storage temperature	-25/+70 ℃
Terminal capacity (top & bottom) min / max	1-16mm
Terminal torque (top / bottom)	3
Busbar systems	Yes
Accessories	No
Dimensions (mm)	72(H)81(L)18(W)
Weight (g)	105
